TRUCK WHEEL DOLLY SUITS 750KG CAPACITY (SINGLE)

SKU: BTWD750

$888.96

Share:
  • Dispatch in: 1-2 days

or 4 payments of $222.24 with Info

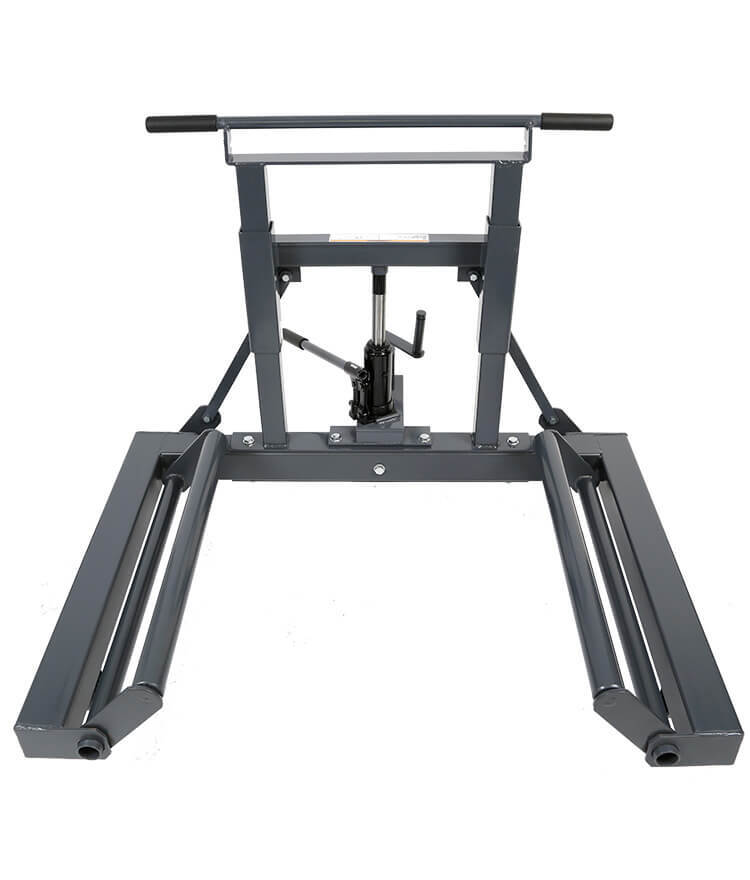

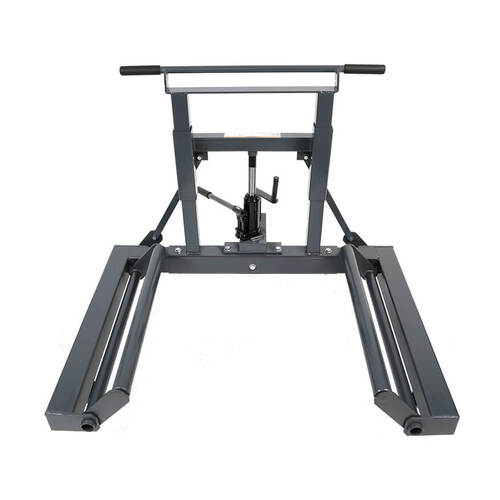

This Borum Industrial Truck Wheel Lifter is designed for the removal, installation and transportation of single, tandem and duplex truck tyre and wheel combinations. Hydraulically activated lift arms handle wheel assemblies up to 400mm frame with tilt feature that aligns lift arms with spindle angle.  Three ball bearing mounted castor wheels provide positive stability and easy maneuverability.  Bearing mounted lift arms easily rotate vehicle rim for bolt pattern alignment.

Features:
  • Hydraulic system actuated to provide smooth, positive power for the removal and installation of single, tandem and duplex tyres and wheels
  • Heavy duty steel frame tilts to allow precise positioning of truck tyres.
  • Supports heavy commercial rims and tyres
  • Rolls easily on quality steel bearing castors
  • Includes heavy duty chain to keep load secure
  • Lead-free paint is applied to ensure a long-lasting finish and prevent corosion
  • Paint finish is oil, grease and dirt-resistant for easy cleanup

Specifications:
  • Safe Working Capacity: 750kg
  • Lift Arm Spread: 533mm (min) to 635mm (max)
  • Lifting Range: 60 - 275mm
  • Tilt Range:   -2.5 to 10 degrees
  • Dimensions: 787(L) x 1092(W) x 895(H)mm
  • Weight: 70kg

Intended Use
For the removal and installation of single, tandem and duplex tyres and wheels.

(BTWD750)

SKU BTWD750
Barcode # 9332105010211
Brand BORUM
Shipping Weight 82.5000kg
Shipping Width 0.900m
Shipping Height 0.200m
Shipping Length 1.100m
Shipping Cubic 0.175000000m3
