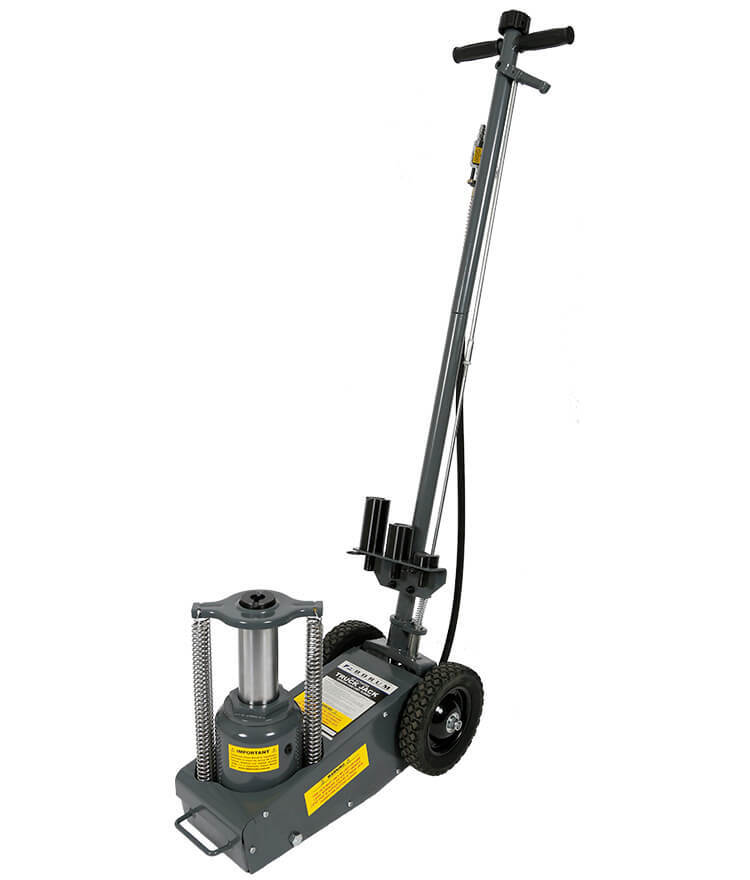

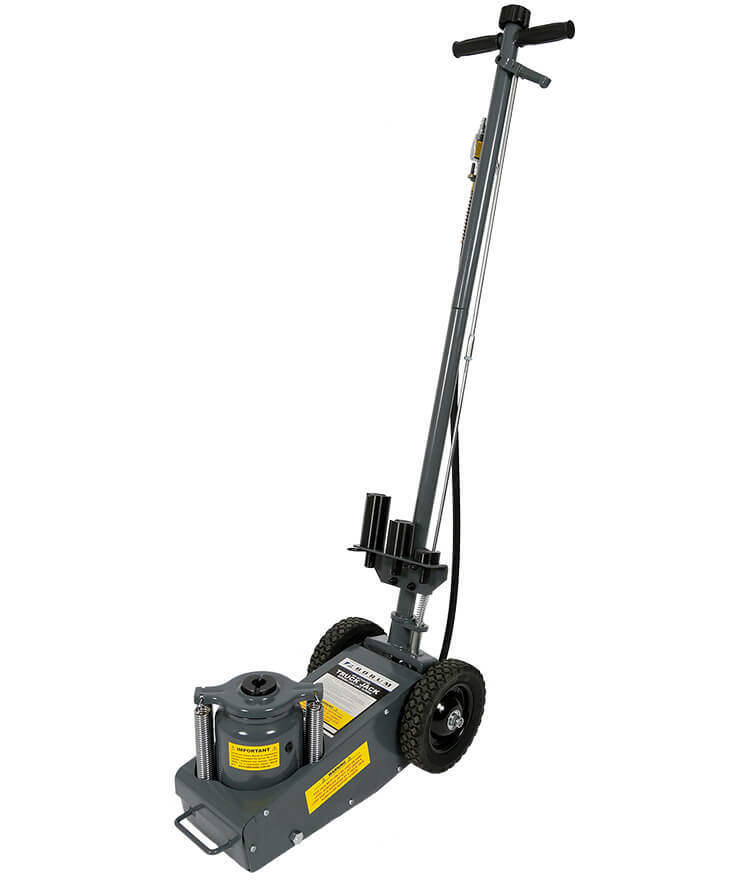

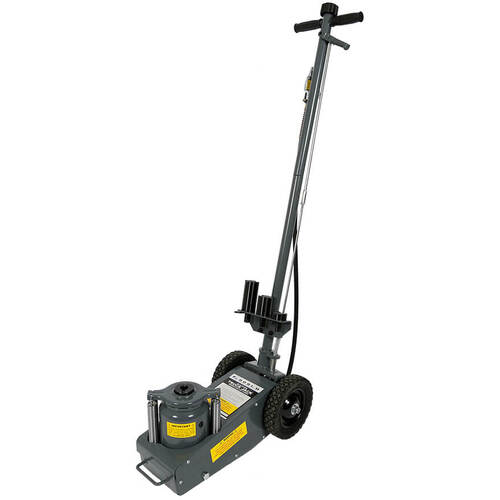

Borum Air/Hydraulic Truck Jack - 35,000kg

SKU: BTJ35TA

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping

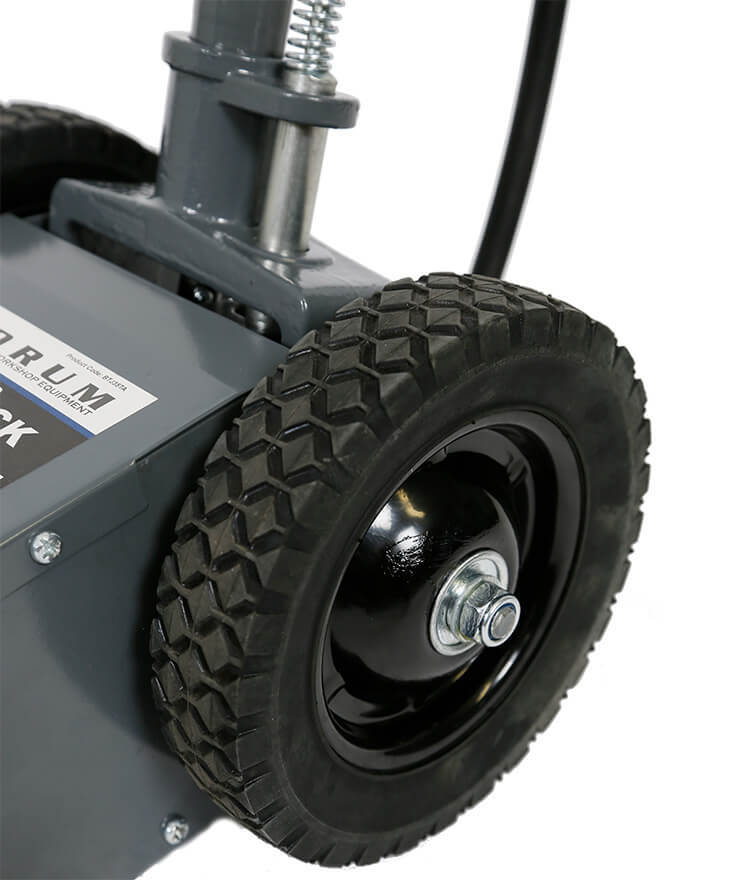

This "Borum Industrial" pneumatic heavy-duty 35,000kg Air Actuated Hydraulic Truck Jack has a powerful air motor to lift heavy loads. The efficient quick lift system is designed to ensure the lifting ram comes in contact with the load faster. The compact design easily fits between dual tandem axles. Ideal for lifting axles, farm vehicles, heavy-duty machinery, industrial equipment and more. This Borum Air/Hydraulic Truck Jack utilises compressed air to activate a booster cylinder, to move hydraulic oil within the cylinder up & down. It adopts an industrial hydraulic design combination of compressed air and hydraulic pressure, to create, strong jacking capacity and low lifting clearance in one jack. The two wheel floor support design lets you really get under your loads with a 255mm minimum height. Designed to lift buses and other large, low-clearance vehicles with maximum stability. Includes height adaptors.

Features:

  • Professional quality rugged steel construction
  • Wear-resistant quality sealing O-rings
  • Strong hydraulic pump
  • Temperature-resistant hydraulic oil

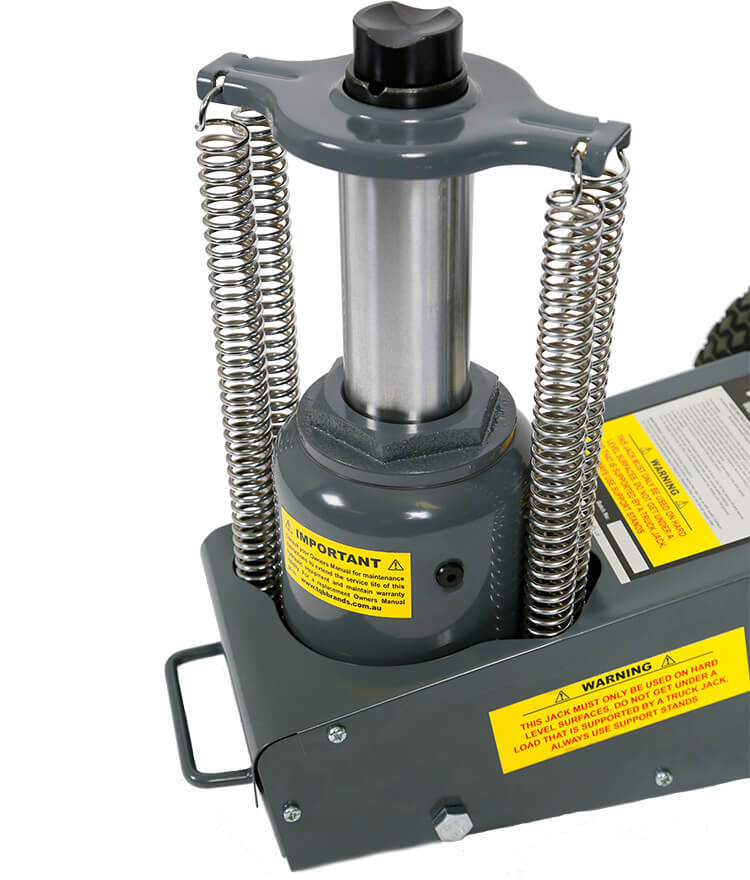

  • Treated and polished piston and ram
  • Built-in bypass hydraulic safety overload system
  • Compact design easily fits between dual tandem axles
  • Quick Lift lifting ram comes in contact with the load faster

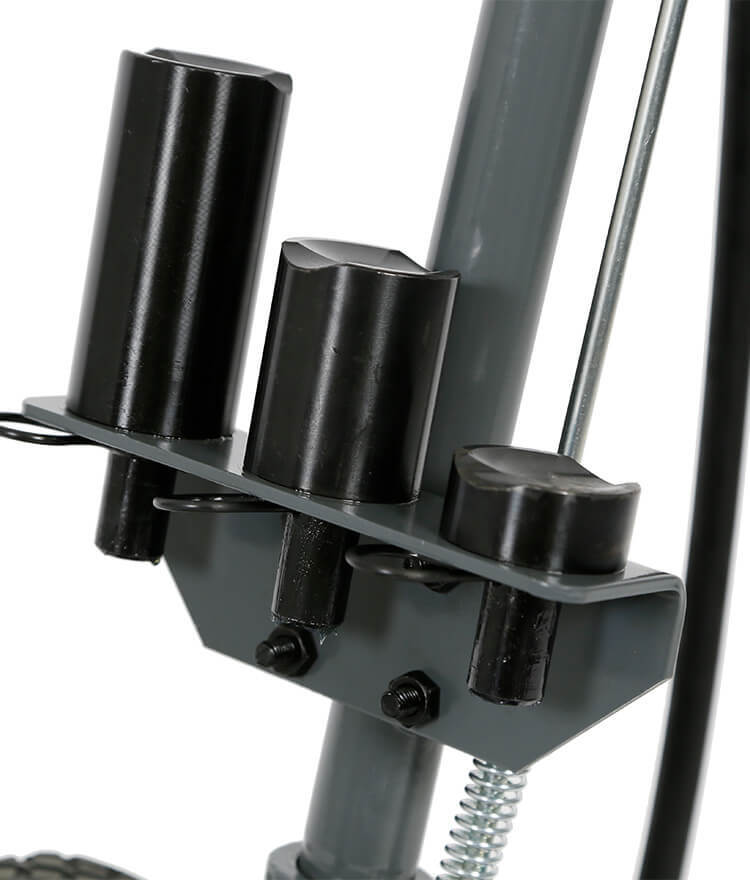

  • Convenient & efficient height adaptors

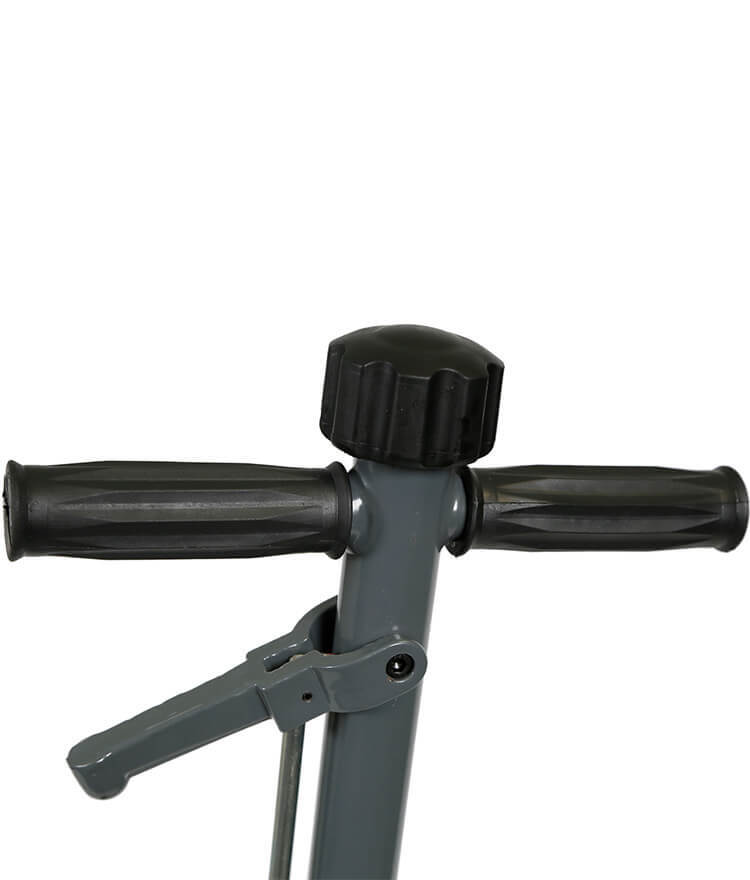

  • 3-position pumping handle
  • High quality lead-free paint ensures long-lasting wear and prevents rust
  • Oil, grease and dirt-resistant finish for easy cleanup

Specifications:

  • Safe Working Capacity: 35,000kg
  • Max. Lift Height: 633mm
  • Min. Lift Height: 255mm
  • Hydraulic Lift: 155mm
  • Adjustable Screw: 123mm
  • Adaptors: 21,61,100mm
  • Operating Air Pressure: 110-125psi
  • Handle Length: 1110mm
  • Chassis: 555(L) x 255(H) x 295(W)
  • Nett Weight: 45kg
  • Carton: 665 x 345 x 260mm
  • Gross Weight: 47kg

Intended Use:

  • For professional heavy duty use on truck, agriculture, construction, mining, mobile home, oil field, automotive, and marine applications where lifting and lowering is required.

NOTE: This Garage Jack must only be used on hard level surfaces and be free to roll during lifting and lowering. DO NOT get under a vehicle that is only supported by this Garage Jack.

WARNING: Always ensure the vehicle wheels are chocked before lifting.This Garage Jack is a lifting and lowering device only and is designed for lifting part of the total vehicle. Do not move or dolly the vehicle whilst the vehicle is on this Garage Jack.

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(BTJ35TA)

SKU BTJ35TA
Barcode # 9332105010655
Brand BORUM
Shipping Weight 51.7000kg
Shipping Width 0.400m
Shipping Height 0.300m
Shipping Length 0.700m
Shipping Cubic 0.067000000m3
