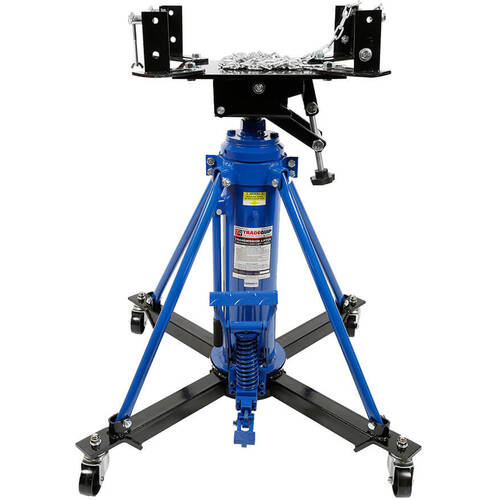

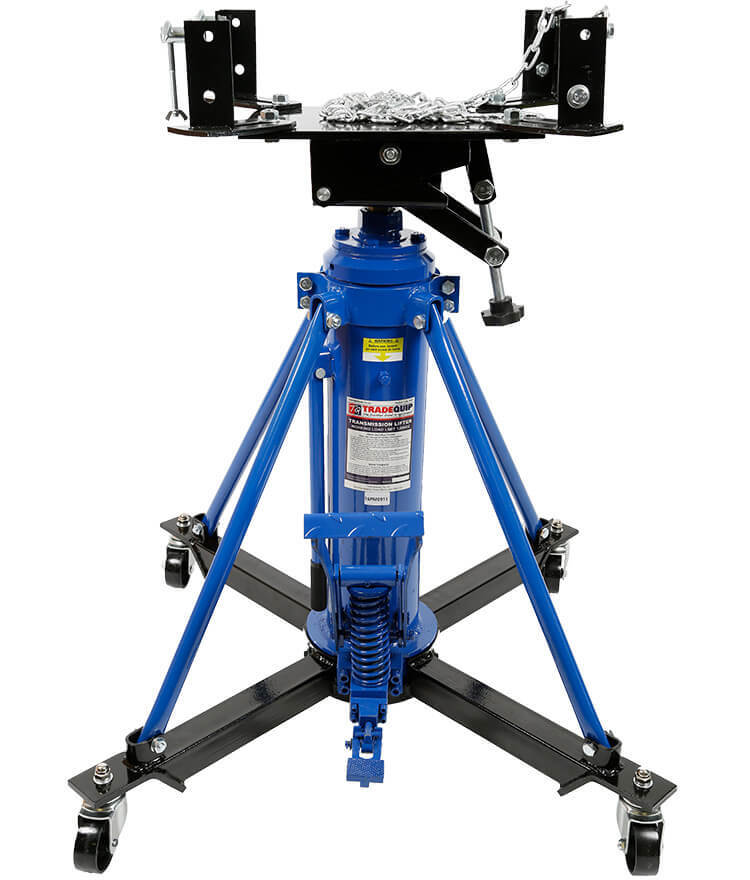

The TradeQuip "Made for the Trade" 1,000kg Transmission Lifter is designed for transmission installation and removal. It features a universal mounting cradle that provides a wide fore and aft tilt range and a manually operated hydraulic system with smooth hydraulic lift and descent. The hydraulic system also includes a bypass system to prevent over extension and accidental overloading. The sturdy and stable design offers safety and security when removing and installing large and heavy transmissions.
This 2-stage telescopic transmission lifter offers a wide range of versatility that will to help increase workshop productivity. Designed to accommodate both large and small transmissions, this handy piece of equipment is ideal for use with 4WD and light truck transmissions. The wide base is enhanced by the additional strut arms and heavy-duty steel swivel castors for easy maneuvering throughout the workshop under load.
- Base frame is constructed of high-grade steel and built to exacting standards for quality and durability
- 2-Stage hydraulic lift
- High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life
- Universal 2-way tilt mounting cradle complete with safety chains
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint finish is oil, grease and dirt-resistant for easy cleanup
- Heavy-duty steel swivel castors
- Safe Working Capacity: 1,000kg
- Minimum Height: 860mm
- Maximum Height 1850mm
- Cradle Size: 355L x 255W
- Forward Tilt: 15°
- Rearward Tilt 7°
- Base Dimensions: 730 x 730mm
- Nett Weight: 82kg
- Carton: 560 x 390 x 820mm
- Gross Weight: 89kg
- Designed for the removal, installation and transportation (in the lowered position) of 4WD and truck transmissions that are raised by an in-ground or above-ground lift.
NOTE: This Transmission Lifter must only be used on hard level surfaces and be free to roll during lifting and lowering.
WARNING: This Transmission Lifter is a lifting and lowering device only and is designed for removing and installing transmissions.
