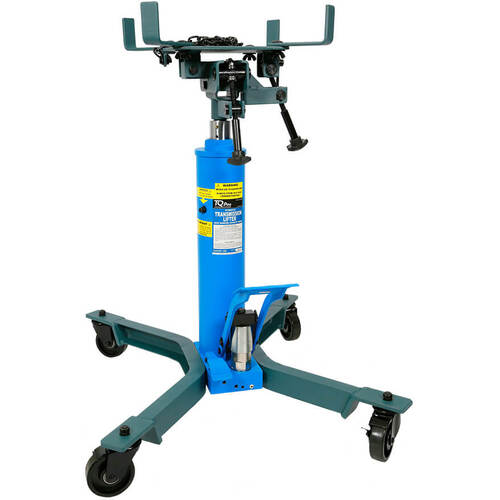

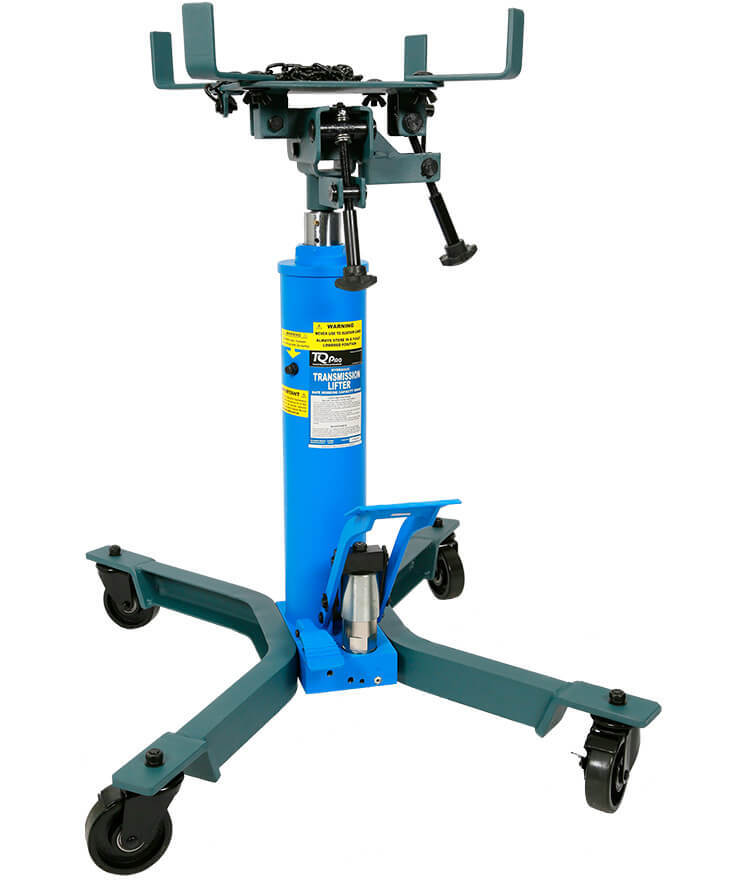

TQPro 500kg Transmission Lifter

SKU: PROTL500

$1,130.00

Share:
  • Ready to Dispatch

This TQ Pro "Latest Applied Technologies" 2-Stage Hydraulic Telescopic Transmission Lifter offers a wide range of versatility designed to help increase workshop productivity. Designed for lifting passenger car transmissions, the universal mounting cradle provides a wide four way tilt range and the wide base is enhanced by four premium nylon swivel castors for safer maneuvering around the workshop. The convenient rapid lift without load and slow descent with load is controlled via the foot operated pump and release valve to keep the mechanic’s hands free during use. The height and cradle adjustability of this telescopic Transmission Lifter makes it great for any transmission installation or removal. CNC technology, ensures the chassis and frame constructed of superior-grade steel is manufactured to exacting standards that meet TQ Pro expectations for professional quality and durability.

 Features

  • Using CNC technology, the chassis and frame is constructed of superior-grade steel and built to exacting standards for professional quality and durability
  • High quality large diameter hydraulic steel cylinder with precision tolerances and in-ram bleeding and lubricating mechanism
  • Piston-ram is treated and polished to minimise wear and extend service life
  • Globally sourced premium quality (doubled) O rings with anti-dust ring, reduce wear and substantially increase durability
  • Concealed double staged pump core
  • Rapid lift without load
  • Slow descent with load
  • Overload safety valve
  • Aviation grade hydraulic fluid
  • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting and durable finish
  • Paint is oil, grease and dirt-resistant for easy cleanup
  • Oversize mounting cradle provides a broad 4 way adjustment / tilt range
  • Premium nylon swivel castors

4 Way Tilting Cradle Offers The Perfect Mounting Angle

The oversize design of the mounting cradle design provides a wide fore and aft tilt range to get the load in the perfect position.

Versatility And Portability To Match Your Needs

Positioning this transmission lifter is just a one-person job. The sturdy base includes four premium nylon castors that swivel a full 360°, adding effortless maneuverability. Once your transmission lifter is in place, the smooth, high speed hydraulic system makes easy work of lifting and lowering.

Use It Day In And Day Out

The TQ Pro Telescopic Transmission Lifter is the perfect choice for lifting passenger car transmissions. The base design makes this transmission lifter easy to move whilst maintaining stability under most vehicle hoists, and an oversized cradle increases contact area with the load for a sure hold on most transmissions.



Specifications

  • Safe Working Capacity: 500kg
  • Maximum Height: 1940 mm
  • Minimum Height: 940mm
  • 2 Stage Lift Ram travel: 1st=490mm 2nd=510mm
  • Cradle Size: 280x280mm (480x480mm Max.)
  • Forward Tilt: 55°
  • Rearward Tilt: 91°
  • Left Tilt: 55°
  • Right Tilt: 16°
  • Base Dimensions: 610 x 740mm
  • Nett Weight: 65kg
  • Carton: 840 x 530 x 280mm
  • Gross Weight: 79kg



Intended Use

  • Designed for the removal, installation and transportation (in the lowered position) of passenger vehicle transmissions that are raised by an in-ground or above-ground lift.



NOTE: This Transmission Lifter must only be used on hard level surfaces and be free to roll during lifting and lowering.

WARNING: This Transmission Lifter is a lifting and lowering device only and is designed for installing and removing transmissions.
