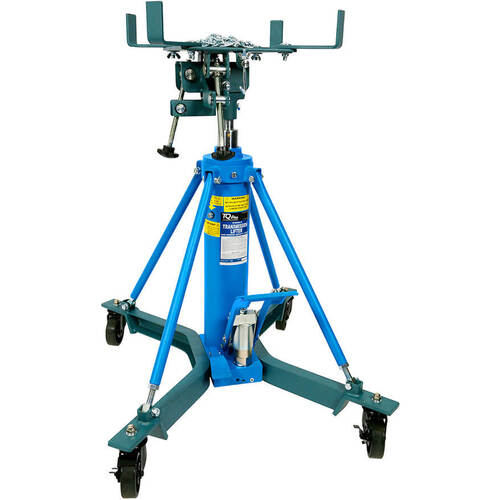

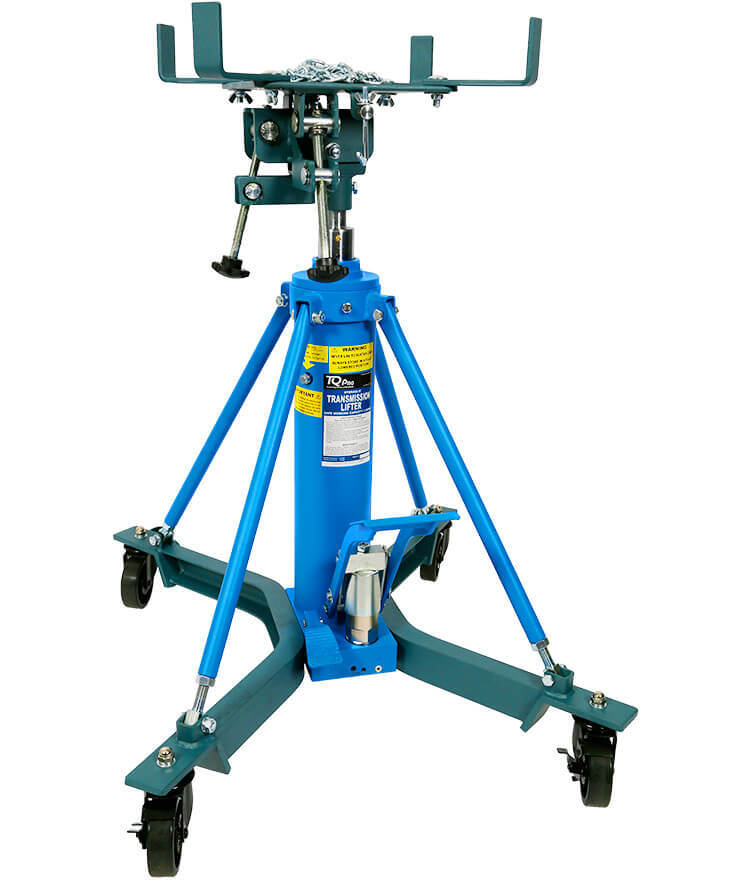

TQPro 1,000kg Transmission Lifter

SKU: PROTL1000

$1,546.00

Share:
  • Ready to Dispatch

or 4 payments of $386.50 with Info

This TQ Pro "Latest Applied Technologies" 2-Stage 1,000kg Hydraulic Telescopic Transmission Lifter offers a wide range of versatility designed to help increase workshop productivity. Designed for use with passenger car, 4WD and light truck transmissions, this Transmission Lifter features a universal "oversized" mounting cradle that provides a wide 4 way tilt range. The telescopic 2-stage design is ideal for reduced clearance lifts and the high speed foot pedal operation keeps hands free during lowering. The manually operated hydraulic system includes a bypass system to prevent over extension and accidental overloading. The sturdy and stable design features four premium quality 'braked' nylon swivel castors for easy maneuverability around the workshop.

Features

  • Using CNC technology, the chassis and frame is constructed of superior-grade steel and built to premium standards for professional quality and durability
  • High quality large diameter hydraulic steel cylinder with precision tolerances and in-ram bleeding and lubricating mechanism
  • Piston-ram is precision machined, treated and polished to minimise wear and extend service life
  • Globally sourced premium (twin) O rings with anti-dust ring, reduce wear and substantially increase durability
  • Concealed double staged pump core
  • Rapid lift without load
  • Slow descent with load
  • Overload safety valve
  • Aviation grade hydraulic fluid
  • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting and durable finish
  • Paint is oil, grease and dirt-resistant for easy cleanup
  • Oversize mounting cradle provides a broad 4 way adjustment / tilt range
  • Premium quality lockable nylon swivel castors

4 Way Tilting Cradle Offers The Perfect Mounting Angle

The oversize design of the mounting cradle design provides a wide fore and aft tilt range to get the load in the perfect position..

Versatility And Portability To Match Your Needs

Positioning this transmission lifter is just a one-person job. The sturdy base includes four premium nylon castors that swivel a full 360°, adding effortless maneuverability. Once your transmission lifter is in place, the smooth, high speed hydraulic system makes easy work of lifting and lowering..

Use It Day In And Day Out

The TQ Pro Telescopic Transmission Lifter is the perfect choice for use with car and light truck transmissions. The base design makes this transmission lifter easy to move whilst maintaining stability under most vehicle hoists, and an oversized cradle increases contact area with the load for a sure hold on most transmissions.ds.

Specifications

  • Safe Working Capacity: 1,000kg
  • Maximum Height: 1940 mm
  • Minimum Height: 940mm
  • 2 Stage Lift Ram travel: 1st=490mm 2nd=510mm
  • Cradle Size: 280x280mm (480x480mm Max.)
  • Forward Tilt: 55°
  • Rearward Tilt: 91°
  • Left Tilt: 55°
  • Right Tilt: 16°
  • Base Dimensions: 610 x 740mm
  • Nett Weight: 76.5kg
  • Carton: 850 x 550 x 350mm
  • Gross Weight: 88kg



Intended Use

  • Designed for the removal, installation and transportation (in the lowered position) of 4WD and truck transmissions that are raised by an in-ground or above-ground lift.





NOTE: This Transmission Lifter must only be used on hard level surfaces and be free to roll during lifting and lowering.

WARNING: This Transmission Lifter is a lifting and lowering device only and is designed for installing and removing transmissions.

(PROTL1000)

SKU PROTL1000
Barcode # 9332105010471
Brand TQPro
Shipping Weight 96.8000kg
Shipping Width 0.550m
Shipping Height 0.350m
Shipping Length 0.850m
Shipping Cubic 0.180000000m3
