TradeQuip Transmission Jack - 1,000kg

SKU: 2057T


  • Dispatch in: 3-4 days

Calculate Shipping

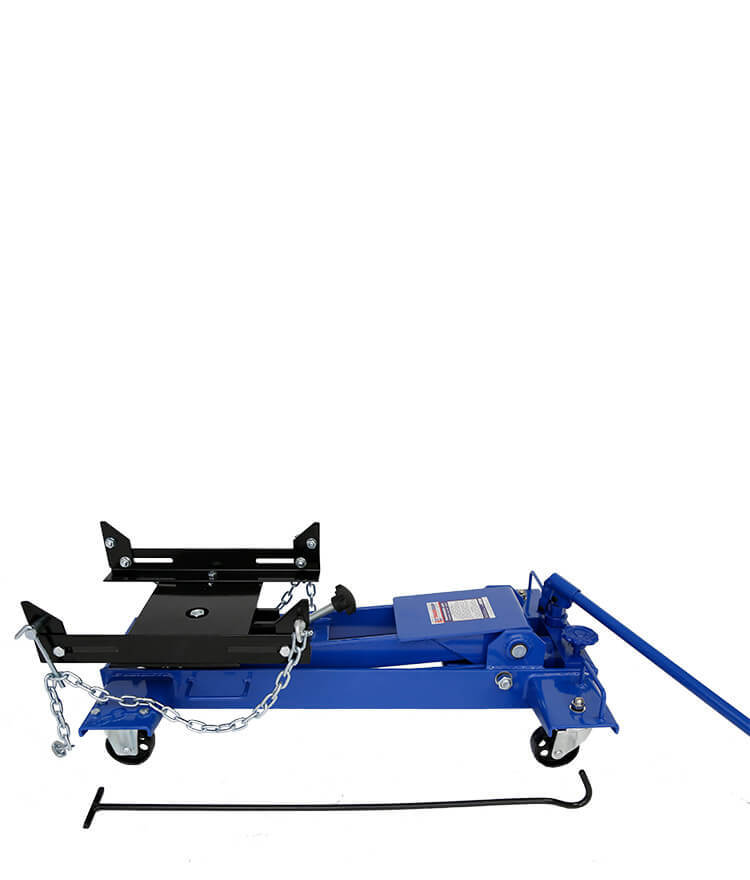

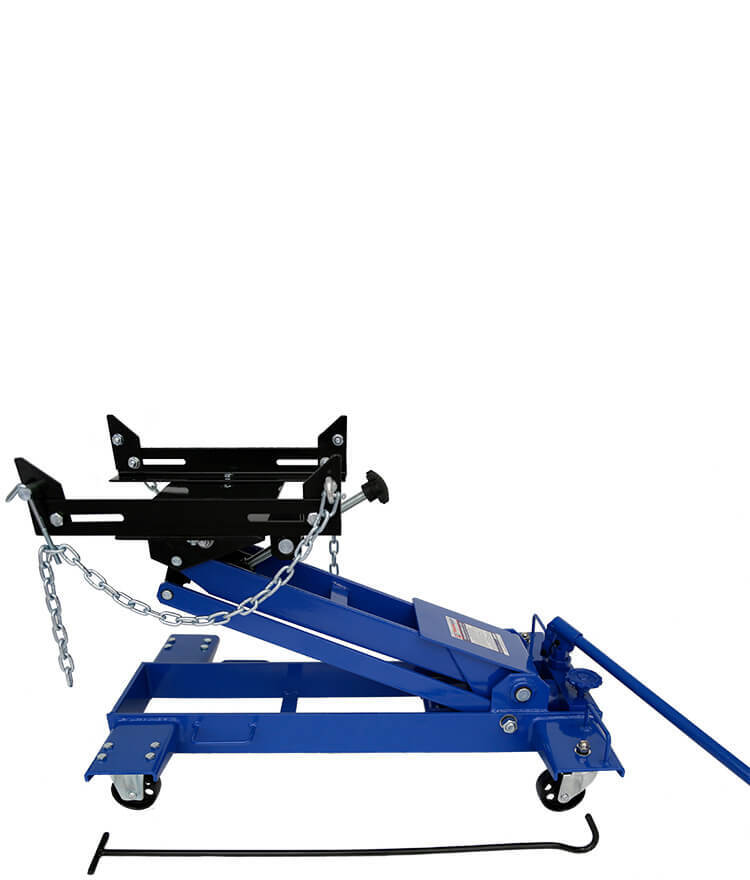

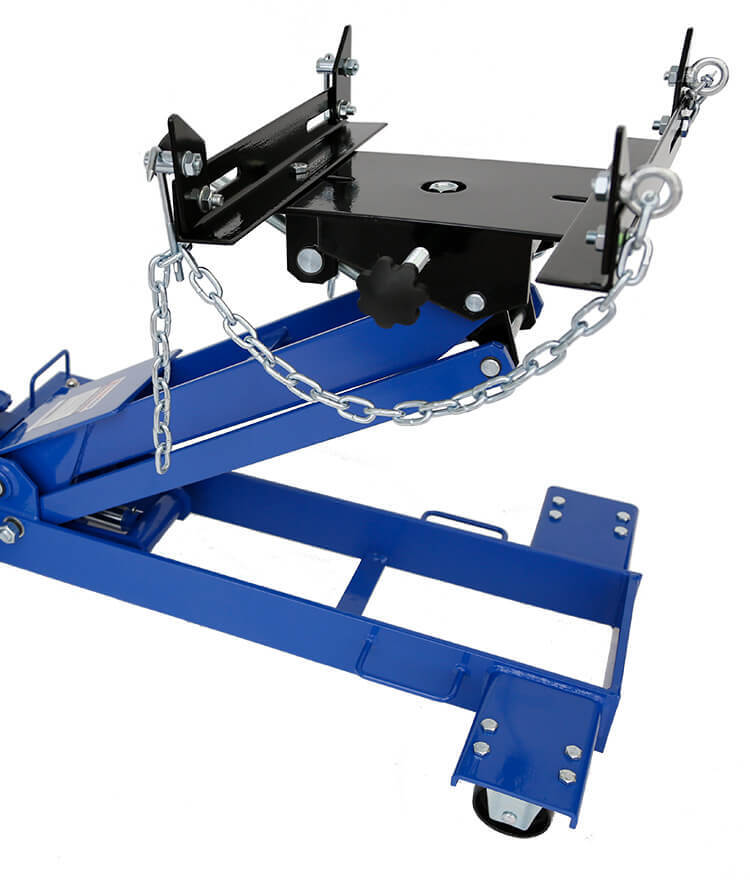

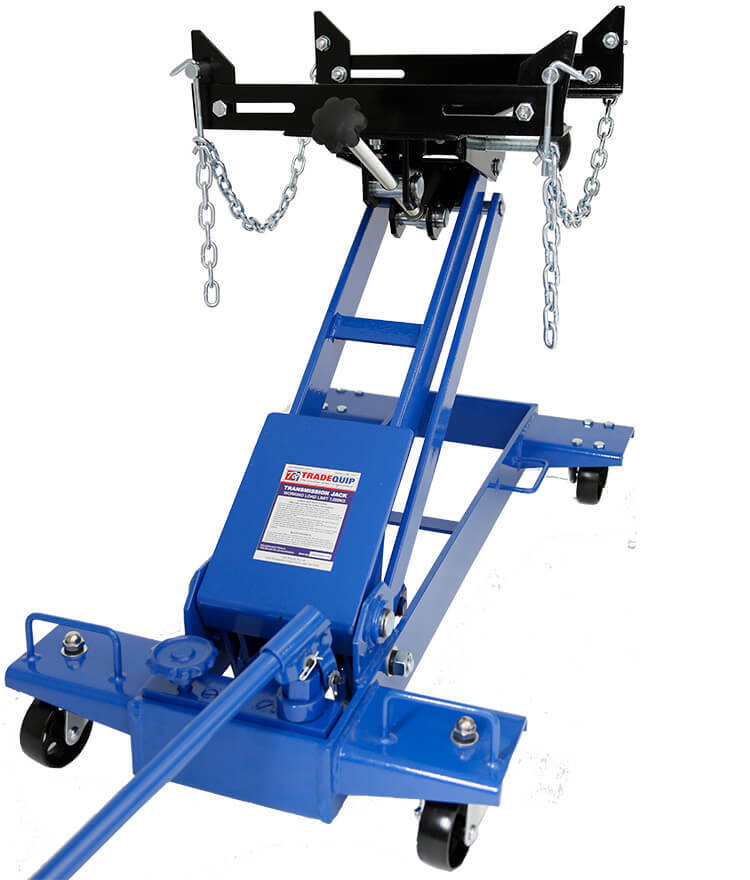

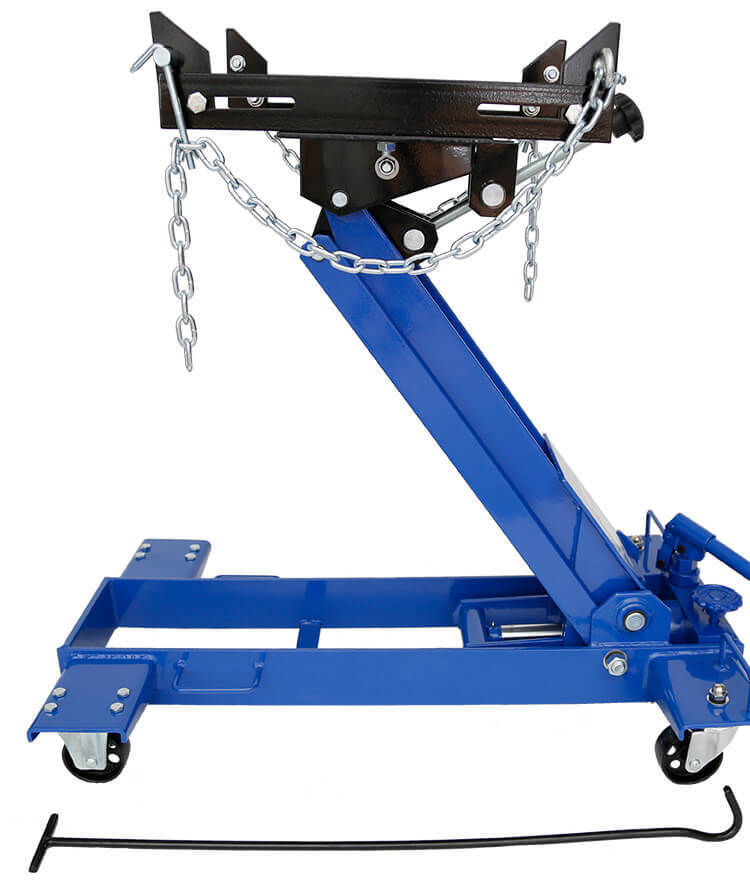

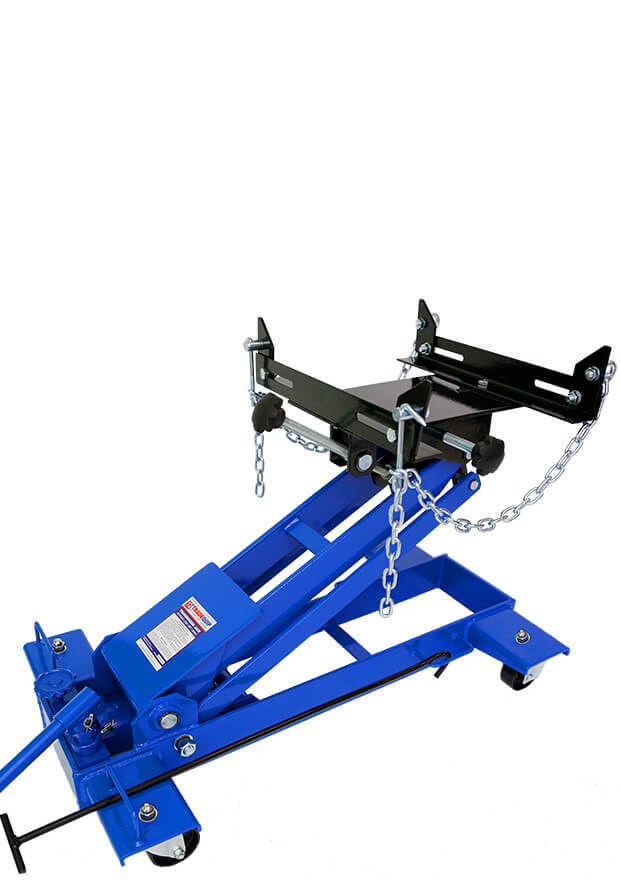

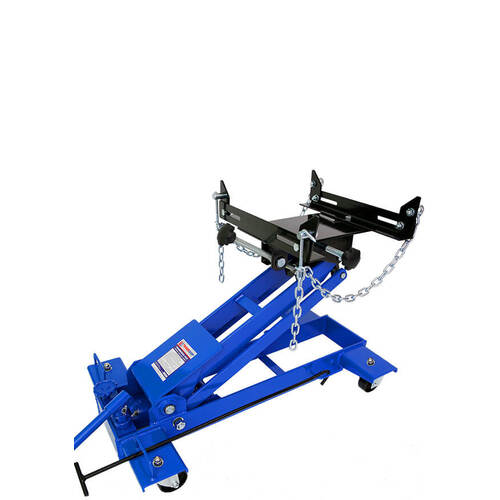

This professional TradeQuip "Made for the Trade” 1,000kg Hydraulic Low Profile Transmission Jack is perfect for transmission installation and removal under ramps. Features include smooth, manually operated hydraulic lifting and lowering and a 360° rotating handle for better load positioning. The universal mounting cradle provides a wide forward, backward tilt range and side to side lateral adjustment. This transmission jack makes transmission removal and replacement easy and safe. Featuring durable rear swivel castors for mobility, this tough transmission jack is also formed and welded with extra strong steel plates for ultimate durability.


  • The adjustable head can be tilted forward, backward for alignment of transmission bolt patterns and pins
  • Lateral cradle adjustment improves efficiency
  • Hydraulic system is protected from overload damage
  • Safety load-restraining chain is vital for raising and lowering safety
  • Four (4) swivel castors allow easy movement and positioning of transmission jack
  • Rugged heavy duty steel wheels with full swivel ball bearing castors

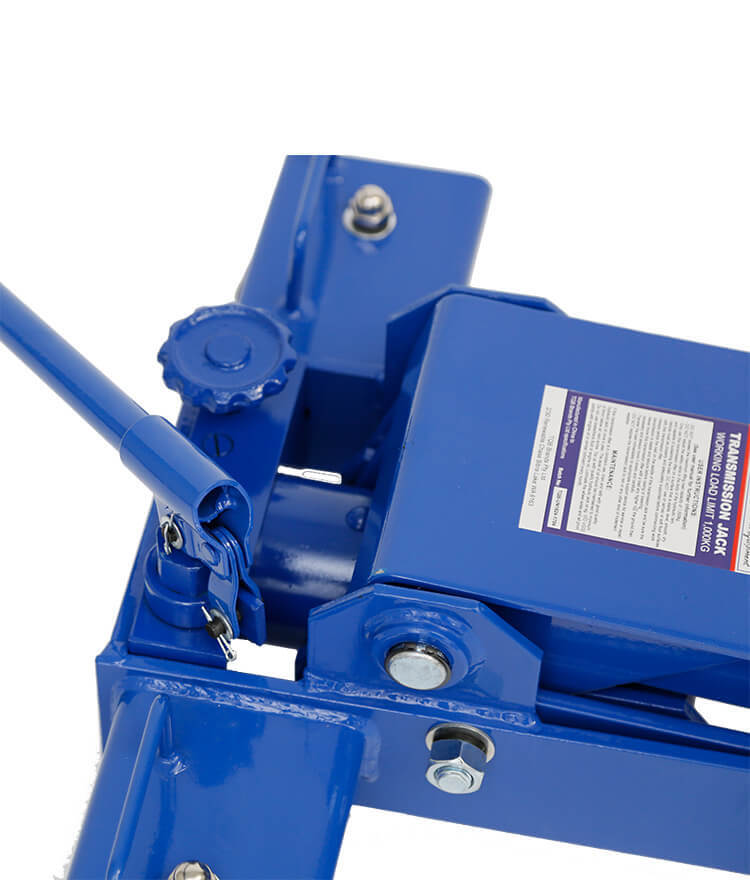

  • User-friendly 360° rotating pumping handle for maximum multi-directional operation


  • Safe Working Capacity: 1,000kg
  • Maximum Height: 725mm
  • Minimum Height: 205mm
  • Cradle Size: 340x200mm
  • Cradle Tilt Forward: 70°
  • Cradle Tilt Back: 15°
  • Cradle Lateral Adjustment: 90mm
  • Chassis: 850(L)x490(W)x305(H)mm
  • Nett Weight: 54kg
  • Carton 910 x 520 x 260mm
  • Gross Weight: 59.5kg

Intended Use:

  • For professional removal and installation of passenger car, 4WD and light commercial transmissions or differentials.


Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



SKU 2057T
Barcode # 9332105000250
Brand TradeQuip
Shipping Weight 74.8000kg
Shipping Width 0.500m
Shipping Height 0.300m
Shipping Length 0.900m
Shipping Cubic 0.157000000m3
