Spreader Beam (9t WLL) - 2405mm

SKU: CFL2439

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

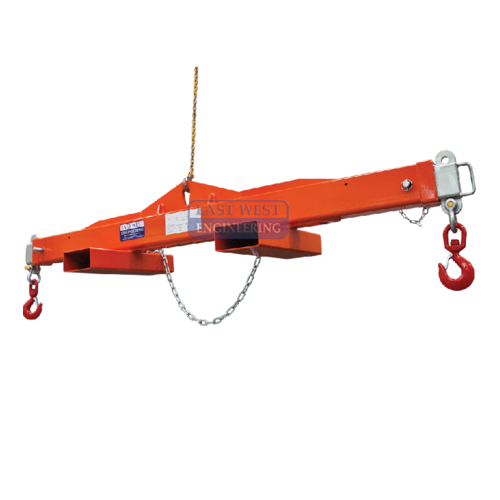

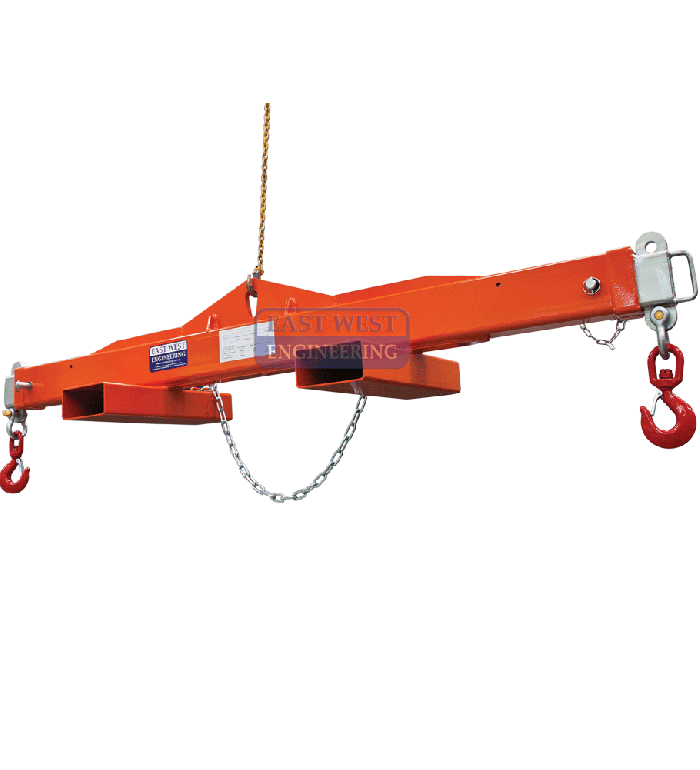

The CFL2439 Spreader Beam is a unique multitasking Beam which can be used by overhead crane or forklift to lift long loads. When used by crane, loads can be lifted via the centre single hook point as a ‘Lifting Beam’, or end lifted using a 2 leg chain sling as a ‘Spreader Beam’. If lifting by forklift, the 600mm long slipper pockets allow fast and safe connection to the truck.

FEATURES:

  • Multi-tasking spreader beam
  • Load connection points are adjustable to 3 positions by moving the extendable arm in position
  • Safety pins used to securely lock extendable arm in position
  • Fitted with 2 safety swivel hooks
  • Certified to the relevant Australian Standards
  • Zinc finish on extendable arms, enamel paint finish on main body

SPECIFICATIONS:

        Model           Rated Capacity (RC) Fork Pockets     Unit Weight (kg)
      when used as    Fully Retracted      Middle Position      Fully Extended   Size (mm) Centre (mm)
       (LC@2405mm)   (LC@3165mm)   (LC@3925mm)
 CFL2439  Forlift Attachment          3500kg 1500kg 750kg 185x85 900                   172
       Lifting Beam                4500kg            2500kg            1300kg
                               Spreader Beam             9000kg                      7200kg                     5600kg

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(CFL2439)

SKU CFL2439
Brand East West Engineering
Shipping Weight 200.0000kg
Shipping Width 0.600m
Shipping Height 0.400m
Shipping Length 2.450m
