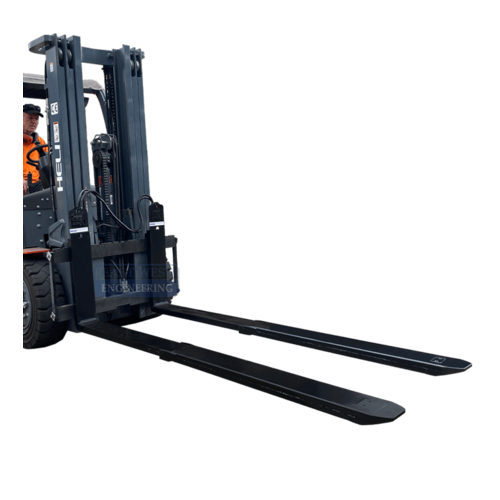

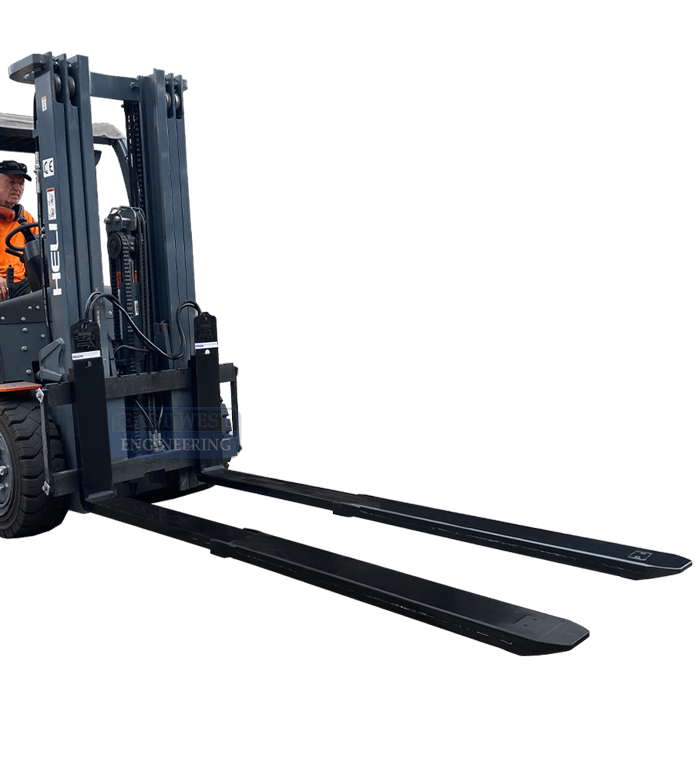

Single Cylinder Telescopic Forks (2.5t WLL) - 1350mm

Current lead time is 2-3 weeks

SKU: TF2251350-1000


  • Dispatch in: 7-10 days

Calculate Shipping

Hydraulic TeleFORKS hydraulically extend and retract for double deep stacking and one-sided loading/unloading. These forks help reduce loading times, increase warehouse storage capacity and vastly improve safety.  One-sided loading/unloading eliminates the need to turn the vehicle or drive forklift to the opposite side making the operation safer. Double deep stacking can increase warehouse capacity by up to 30% compared to single deep warehouse operation..


  • Allows ‘double deep stacking’, increasing warehouse capacity
  • Allows one-sided loading and unloading, saving time and increasing driver safety
  • Phasing cylinders keep fork motion in sync
  • Reinforced heel gives less deflection
  • Easy connection of the forks onto the fork carrier
  • Dual cylinder models provides greater push/pull power, ideal for performing under demanding circumstances
  • Requires one additional hydraulic function
  • Local technical support and spare parts
  • Optional Pallet Stops prevent forks from protruding through to the rear pallet


 Model   Class   WLL @   Cylinders     Length     Extension     Section   Lost  Weight
       600mm LC   per (mm) (mm) w x h   Load     per pair
     (kg)   fork          (mm) (mm)  (kg)
 TF2251200-850  II  2500  single  1200  850  132 x 57  45  162
 TF2251350-1000   II  2500  single  1350  1000  132 x 57  45  177
 TF4251200-850  II  2500  dual  1200  850  162 x 57  45  192
 TF4251350-1000  II  2500  dual  1350  1000  162 x 57  45  212
 TF4351200-850  III  3500  dual  1200  850  162 x 57  45  205
 TF4351350-1000  III  3500  dual  1350  1000  162 x 57  45  225


Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



SKU TF2251350-1000
Brand East West Engineering
Shipping Weight 315.0000kg
Shipping Width 0.900m
Shipping Height 0.700m
Shipping Length 1.500m
