Sideways Drum Rotator (Handle Driven)

Current lead time is 2-3 weeks

SKU: SW-NH

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

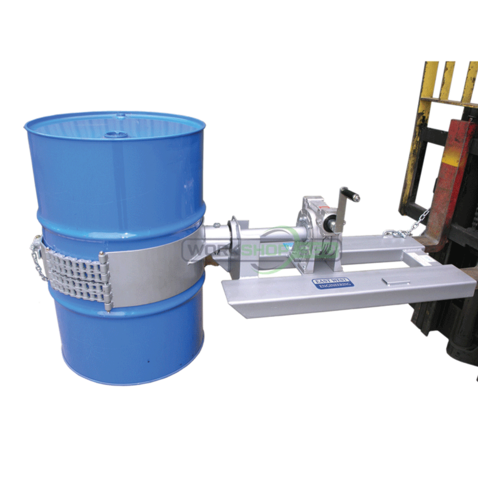

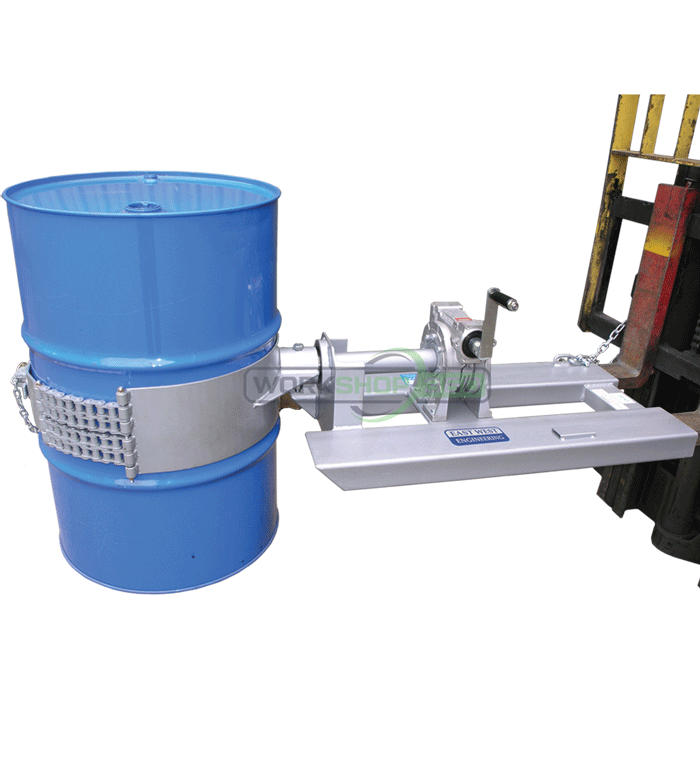

The SW-NH Sideways Drum Rotator is designed to lift a 205 litre drum at a sideways direction to the forklift and rotate 360 degrees. Rotation of the drum is controlled through the gear box via a hand wheel, allowing the entire contents of the drum to be tipped.

FEATURES:

  • Empties a standard 205 litre drums with minimal effort
  • Hand wheel is used to rotate the drum, ideal for lowered loads
  • Gearbox allows full control of rotation
  • Belly strap and eccentric lock secures drum in position
  • Slip-on attachment allows quick connection to a narrow carriage forklift
  • Can be coupled with the PBO Plastic Barrel Option
  • Enamel paint finish

Plastic Barrel Option (PBO):
By replacing the standard belly strap, the PBO option allows for plastic drums and barrels, as well as standard steel drums to be handled. The dual woven and chain combination belly straps hold the drum or barrel firmly in position.  The PBO option is suitable for a maximum load of 350kg

 Model



 Rotation



Working
  Load Limit
(kg)
  Fork Pocket
Size
(mm)
  Fork Pocket
Centres
(mm)
Load
  Centres
 (mm)
Unit
  Weight
 (kg)
 SW-NH 360° 500 185 x 65mm 430 1430 117
  SW-NHPBO   360° 350 185 x 65mm 430 1500 132

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(SW-NH)

SKU SW-NH
Brand East West Engineering
Shipping Weight 122.0000kg
Shipping Width 0.630m
Shipping Height 0.400m
Shipping Length 1.400m
Shipping Cubic 0.344000000m3
