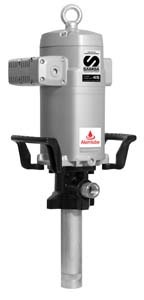

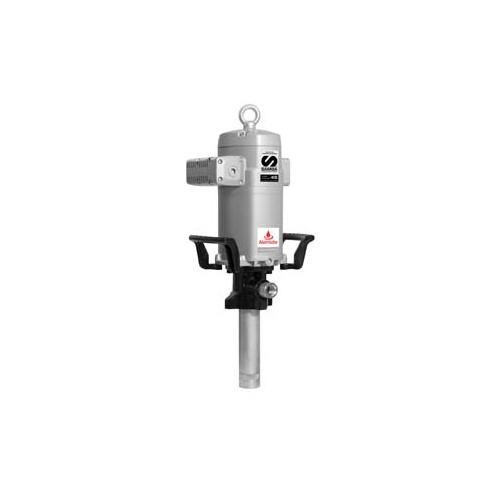

Samoa 10:1 Ratio Pump - 4-1/2" Air Motor - 65LPM

SKU: 536030

$4,890.01

Share:
  • Dispatch in: 3-4 days


Calculate Shipping

Samoa 10:1 ratio pump, 4-1/2" air motor, 65L/min STUB PUMPS

• Double acting air operated 10:1 ratio transfer pump
• 4-1/2" (115mm) air motor
• Air pressure rating 20 to 174psi (1.4 to 12 bar)
• Air consumption: 850 Nl/min (30 cfm)
• Maximum fluid outlet pressure: 1,740psi (120 bar)
• Air motor effective diameter:115mm
• Air motor stroke: 100mm
• Flow rates of up to 65 L/min
• 1/2" BSP (f) air inlet
• 1-1/2" BSP (f) fluid inlet/3/4”BSP (f) fluid outlet
• Wetted & seal materials:
• Cast Iron / Hard Chrome Steel/Steel/Polyurethane/NBR
• Noise level: 80 dB
• Total pump height: 702mm (536030), 1,357mm (536010)
• Weight: 17 kg

(536030)

SKU 536030
Brand Alemlube
Shipping Weight 17.0000kg
