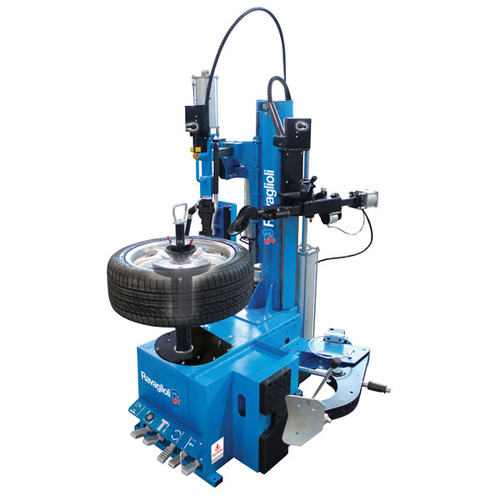

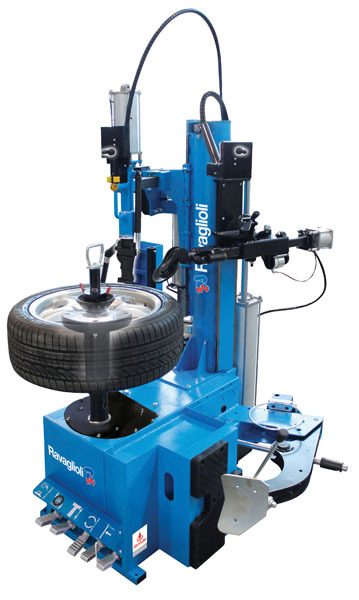

Ravaglioli Lever-Less Tyre Changer w/ Under Tyre Inflation & Assist Arm

SKU: G8945ITV.26S


  • Dispatch in: 3-4 days

Calculate Shipping

Ravaglioli Lever-Less Tyre Changer w/ Under Tyre Inflation & Assist Arm



  • Post with vertical “space saver” movement
  • Bead demount controls: down and up and the bead is demounted
  • Patented tool in plastic anti-scratch material
  • Rim edge “memory” controls:place it first time, then it will go back to same position just pushing a pedal
  • Lever for quick opening of bead breaker arm
  • Roller radial position setting
  • Quick locking unit (standard)
  • Two position locking plate for standard or reverse rims

Technical Specifications:

 Rotation speed (rev/min)  7,3 6,5/13 (V VERSION) 0-16 (D VERSION)
 Max torque  1200 Nm
 Recommended air supply  8 / 10 bar
 Max wheel diameter  45”/1143 mm
 Max wheel width  381 mm (15”)
 Max side shovel bead loosene r opening  432 mm (17”)
 Handled wheels from   10”- 26”
 Rotation motor  1,5 Kw inv.+ 0,75kw motor
 Bead loosener power (roller)  1200 kg (2645 lbs)
 Bead loosener power (side shovel)  3600 kg (7900 lbs)
 Noise level  <80db


If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to as soon as possible (often within the same day), with the best prices and shipping solutions available.

Alternatively, get in touch with our friendly team via phone on 1300 378 900

Why is this product priced on application (POA)?

For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.


Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



SKU G8945ITV.26S
Brand Alemlube
Shipping Weight 424.0000kg
Shipping Width 1.360m
Shipping Height 1.410m
Shipping Length 2.000m
