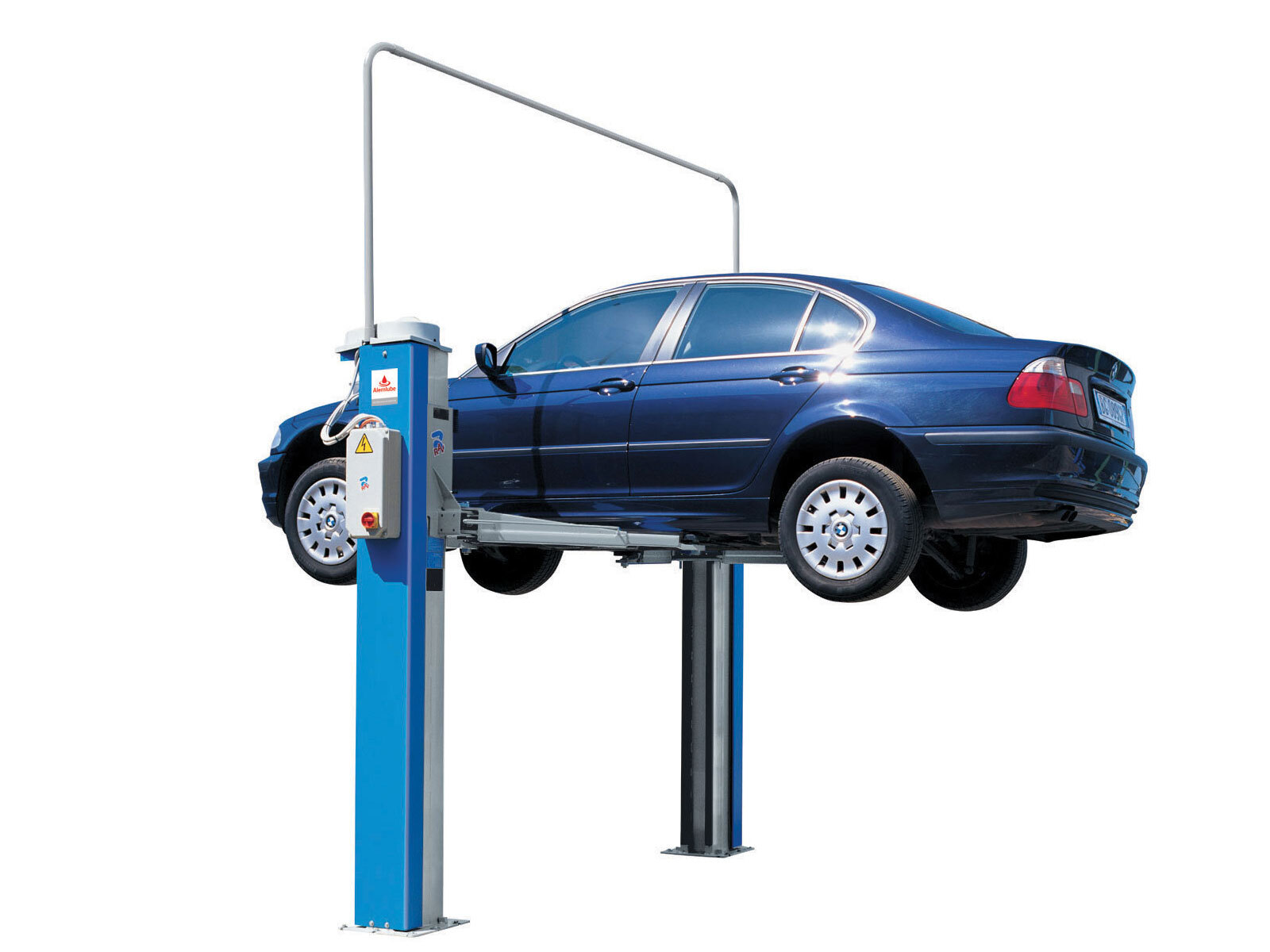

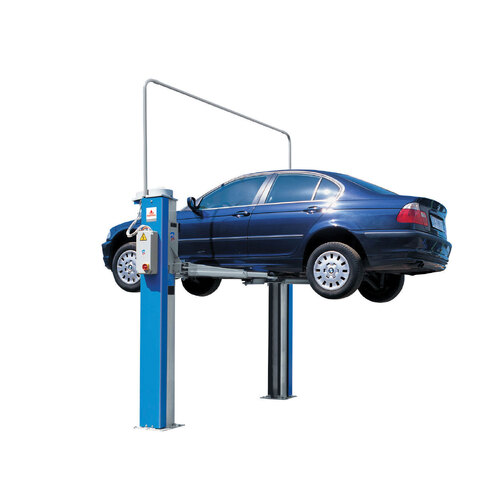

Ravaglioli Electro-Mechanical Clear Floor Hoist - 3.2t

SKU: KPX337WK

$7,840.00

Share:
  • Dispatch in: 3-4 days


Calculate Shipping

Ravaglioli Electro-Mechanical Clear Floor Hoist  - 3.2t



Features:

  • Automatic and permanent nut lubrication system to guarantee efficient lubrication during lifting and descent
  • Main nut made of bronze (no plastic) with high resistance to wear, for greater safety
  • Steel high resistance rolled screw to provide long life
  • Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor with self-locking conical design
  • Tubular structure made of 5 robot welded sections, nothing sturdier in the world.
  • The electromechanical synchronisation keeps the carriages within an alignment of 20 mm.
  • Short arms with longer reach, recommended to lift off-road vehicles
  • Double thread pads with a minimum height of 95mm only KPX337WR 4.2t Electro-Hydraulic Clear Floor Hoist, double thread pads with a minimum height of 80mm & extra low profile arms, parallel to the floor
  • Extra low profi le arms, parallel to the floor

Specifications:

  • Capacity: 3,2T
  • Lifting height: 2020mm
  • Lowest lifting point: 95-135mm
  • Short arm extraction: 500-900mm, Long arm extraction 810-1200mm
  • Distance between: columns 2500 mm
  • Drive through width: 2440mm
  • Total width: 3260mm
  • Total height: 2640mm
  • Total height with syncronizing cable: 3870mm

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(KPX337WK)

SKU KPX337WK
Barcode # 9323627015433
Brand Alemlube
Shipping Weight 535.0000kg
Shipping Width 0.730m
Shipping Height 2.880m
Shipping Length 0.760m
