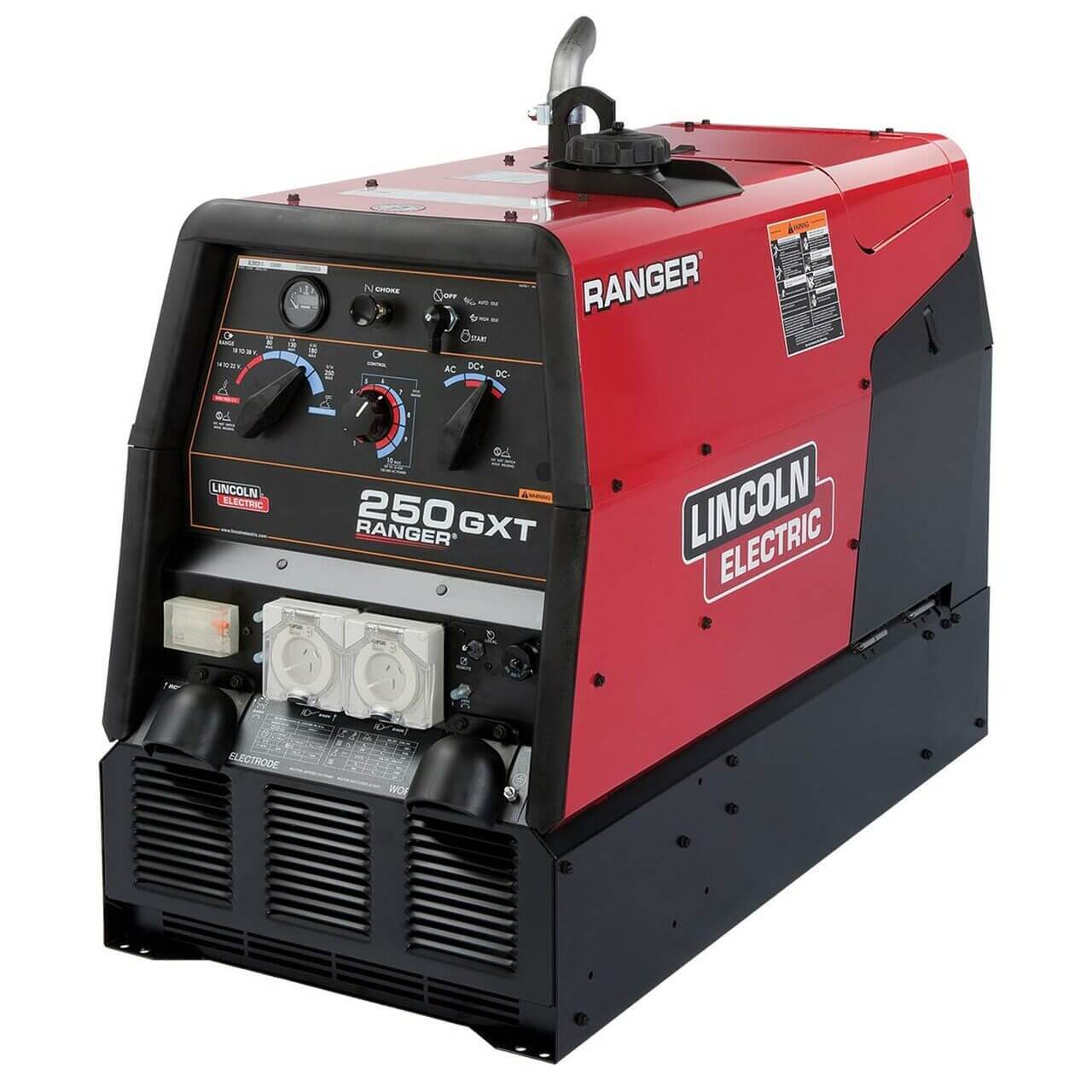

Lincoln Electric Ranger250 GXT Engine Driven Welder (Kohler)

SKU: K2923-1


  • Dispatch in: 3-4 days

Calculate Shipping

Ranger® 250GXT



Get all of the XTras needed for construction and maintenance work. That's XTra welding performance with 250 amps for AC or DC stick and DC wire welding and XTra power with up to 11,000 watts peak for lights, grinders or high amperage equipment. You also get XTra protection and quiet operation with the Lincoln enclosed case


Stick, TIG, MIG, Flux-Cored, Gouging

Price Machine Only.


  • Totally Enclosed Case
  • Engine is fully protected.
  • 3 service access doors.
  • Low Noise – 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.
  • Choose from painted, camo wrapped, or stainless steel roof, case sides, and engine doors.
  • Versatile AC/DC Welding
  • AC/DC welding output for a broad range of stick electrode types.
  • Excellent AC TIG welding with optional TIG Module and either a foot or hand Amptrol™ for aluminum and other alloy welding.
  • MIG and Flux-Cored capable (with optional equipment).
  • Remote ready! 6-pin connector and local/remote switch for remote control operation.
  • 11,000 Watts Peak Single-Phase AC Generator Power
  • Peak for motor starting.
  • 10,000 watts continuous power for generator, plasma cutter, or inverter welder.
  • Lights, grinder, power tools.
  • 23 HP Kohler® Gasoline Engine
  • 2 cylinder, 4 cycle overhead valve air-cooled design.
  • Electric fuel pump avoids vapor lock.
  • Oil drain extension for easy oil changes.
  • 12-gallon tank for extended run times.
  • Electric fuel gauge located on the control panel makes it easy to check the fuel level during operation and refueling.
  • Rugged Reliability
  • Welding and AC Generator Outputs Rated at 104°F (40°C).


  • Output range (A) 50 - 250
  • Rated output 250A/30V@100% •
  • Auxillary power 7.2kW - 2 x 240V
  • Engine model type Kohler® CH23S • 2 cyl, Petrol
  • Processes Stick, TIG, MIG, Flux-cored
  • Weight (kg) 273
  • Dimensions HxWxD (mm) 759 x 546 x 1074
  • Warranty 3 years


If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to you as soon as possible (often within the same day), with the best prices and shipping solutions available.

Alternatively, get in touch with our friendly team via phone on 1300 378 900

Why is this product priced on application (POA)?

For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.


Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



SKU K2923-1
Brand Lincoln Electric
Shipping Weight 293.0000kg
Shipping Width 1.000m
Shipping Height 1.600m
Shipping Length 1.000m
Shipping Cubic 0.528000000m3
