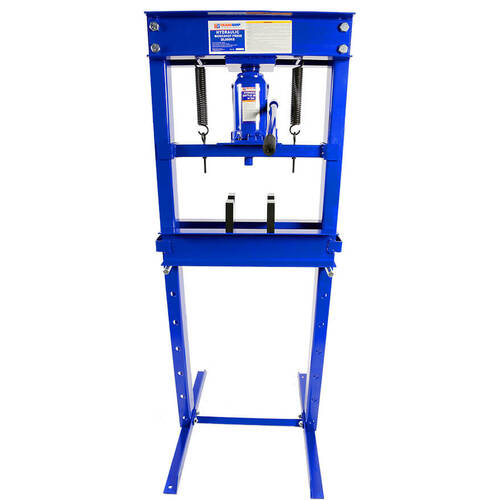

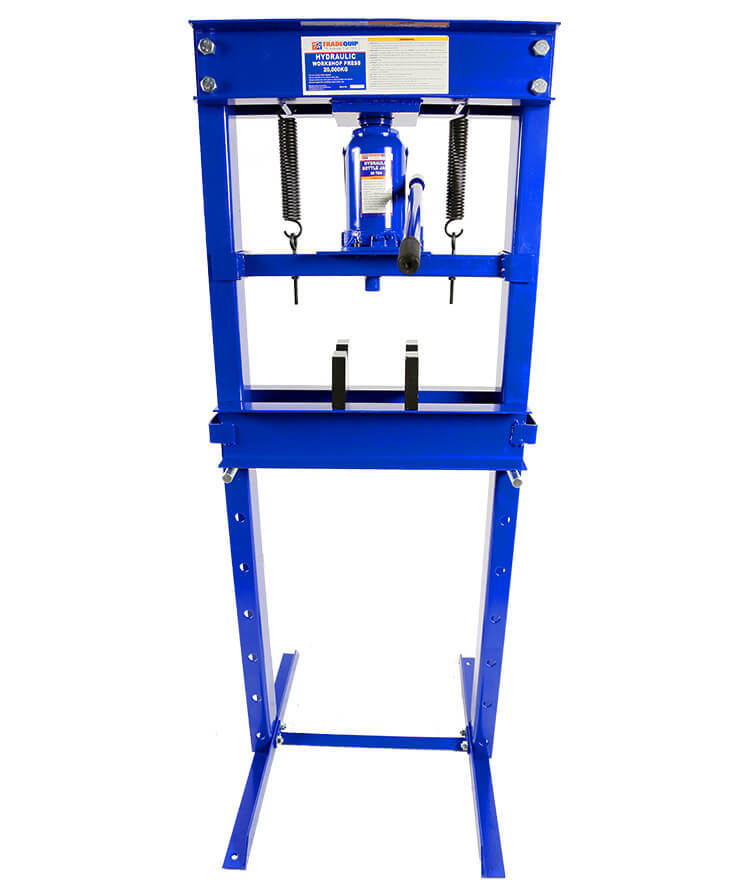

HYDRAULIC PRESS 20,000KG

SKU: 1060T

$470.47

Share:
  • Dispatch in: 1-2 days

or 4 payments of $117.62 with Info

The TradeQuip "Made for the Trade" Hydraulic Workshop Press is great for straightening, stamping, bending and pressing any component that is hard to handle. The polished inner cylinder walls extend the life of the hydraulic seals to minimize abrasion and wear, while the cylinder ram and pistons are also polished and chromed, guided by high performance seals, wear rings and dust seals.

It is ideal for a variety of workshop applications and in particular suited to agricultural or industrial use. Jobs such as straightening,bending, folding, punching, removing bolts and bearings etc, are some of the tasks that can be easily accomplished.

Features:

  • Heavy-duty H-frame constructed of high-grade steel and built to exacting standards for quality and durability
  • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
  • Paint finish is oil, grease and dirt-resistant for easy cleanup
  • High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
  • Dependable double spring return for fast ram retraction
  • Piston-ram is treated and polished for extended life
  • Reinforced head bolster for added strength
  • Pair of bed plates included

Specifications:

  • Safe Working Capacity: 20,000kg
  • Working Range: 50 - 890mm
  • Overall Height: 1560mm
  • Overall Width: 600mm
  • Overall Depth: 700mm
  • Bed Outside: 200mm
  • Bed Inside: 96mm
  • Bed Width: 510mm
  • Piston Ram Stroke: 150mm
  • Ram Diameter: 105mm
  • Nett Weight: 78kg
  • Carton 1 of 2: 830 x 240 x 280mm
  • Carton 2 of 2: 1600 x 150 x 150mm
  • Gross Weight: 84kg

Intended Use

For regular professional straightening, bending & pressing. Removing and installing gears, bearings and bushings.

(1060T)

SKU 1060T
Barcode # 9332105010044
Brand TradeQuip
Shipping Weight 88.0000kg
Shipping Width 0.200m
Shipping Height 0.300m
Shipping Length 0.800m
Shipping Cubic 0.061000000m3
