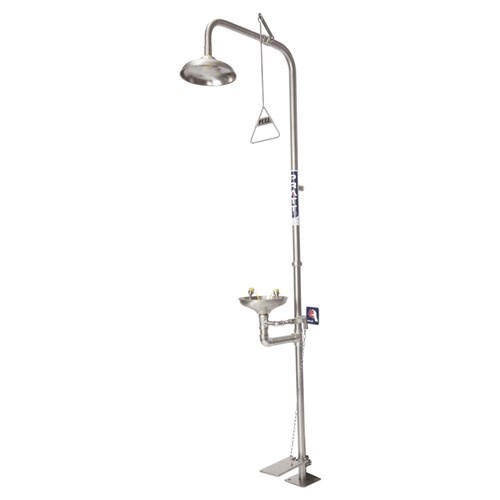

Pratt Combination 304ss Shower Non-Aerated Single Nozzle w/ Bowl & Foot Treadle

SKU: SE693


  • Dispatch in: 1-2 days

Calculate Shipping
  • Combination Shower and Eye/Face Wash station constructed in 316 stainless steel specifically for harsh Australian conditions. This high grade stainless steel model provides greater corrosion resistance and durability for marine and harsh chemical environments.
  • All of the following components are made pf 304 stainless steel:
  • Shower stanchion (including base plate, barrel union & threaded connections)
  • Eyewash bowl assembly including mounting socket for spray head assembly
  • Dual eye/face wash spray head assembly
  • Shower arm & Foot treadle with chain
  • Pull rod & Push Handle
  • Manifold T-Junction & Braided hose assembly
  • Some components are made of 316 Stainless Steel, including: Shower Head, Ball Valves, Connection Components. Only Eye/ Wash Covers with ball chain and shower head internal impeller are made of AES Plastic
  • Type: Hand & Foot operated
  • Dimension (mm): 2450H x 470W x 883D mm
  • Rec Min Connection: 25mm
  • Rec Min Supply: 120 LPM
  • Shower Flow Rate: 90 LPM
  • Eye Wash Flow Rate: 30 LPM
  • Minimum Pressure: 210 kPa
  • Material of Construction: 316 Stainless Steel
  • Australian Standard: AS4775


Barcode # 9332881123433
Brand Pratt
Shipping Weight 15.5000kg
Shipping Width 0.190m
Shipping Height 0.370m
Shipping Length 1.220m
