Hydraulic Concrete Kibble w/ Slide Valve - 1.0cu.m



  • Dispatch in: 7-10 days

Calculate Shipping

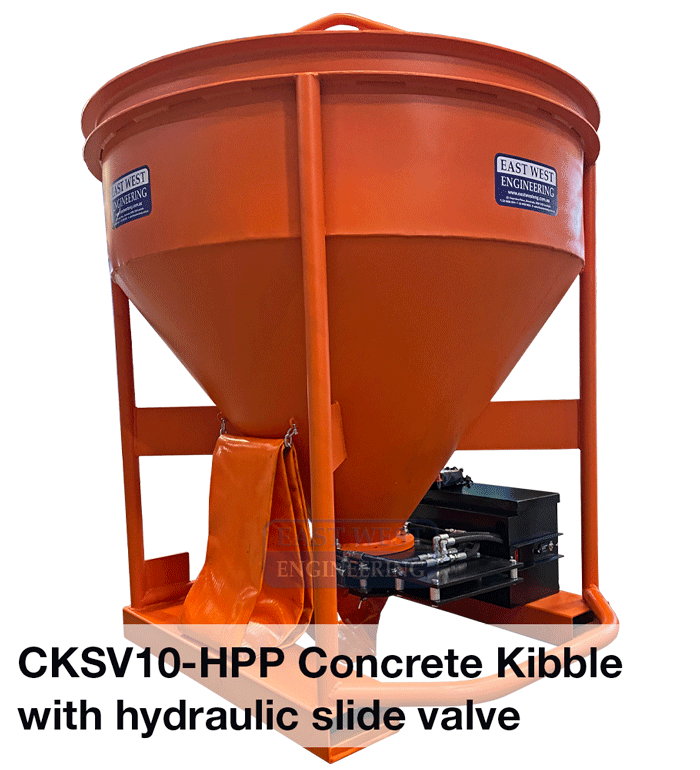

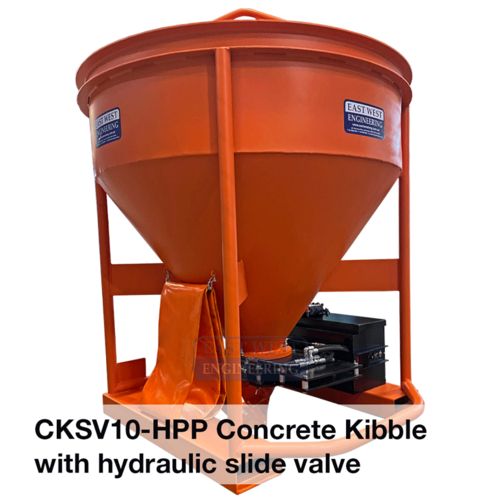

The CKSV10 Concrete Kibble is designed for the easy transfer of concrete or similar materials on-site by overhead crane.


  • Suits use with concrete and other materials
  • Ideal for filling wall cavities, columns and other confined spaces
  • Lever actuated slide valve allows operator to regulate concrete flow
  • 200mm diameter slide valve allows precise control over the concrete flow
  • 1.5m long, 200mm diameter ‘Lay Flat’ hose fitted
  • Fork pockets and crane lugs fitted for transport around the work site
  • Smooth interior allows easy discharge and fast cleaning
  • Enamel paint finish


 Working Load Limit (WLL)      3000kg
 Capacity  1.0 cu.m
 Transport Dimensions  1505 x 1445 x 1870mm
 Unit Weight  295kg
 Fork Pocket Size  185 x 60mm
 Fork Pocket Centres  870mm


If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to as soon as possible (often within the same day), with the best prices and shipping solutions available.

Alternatively, get in touch with our friendly team via phone on 1300 378 900

Why is this product priced on application (POA)?

For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.


Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



Brand East West Engineering
Shipping Weight 1288.0000kg
Shipping Width 1.450m
Shipping Height 1.840m
Shipping Length 1.450m
