Hexagonal Concrete Mould - 1085 x 943 x 825mm



  • Dispatch in: 7-10 days

Calculate Shipping

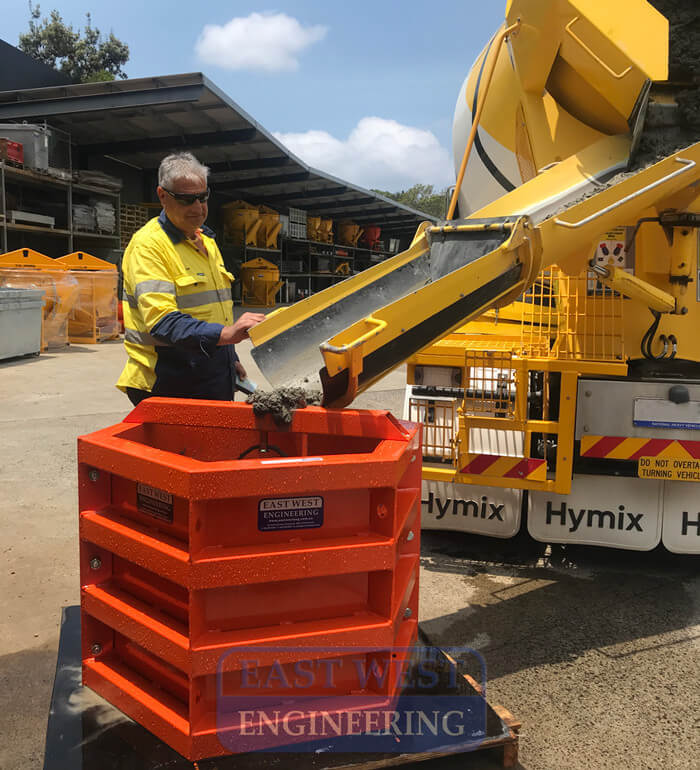

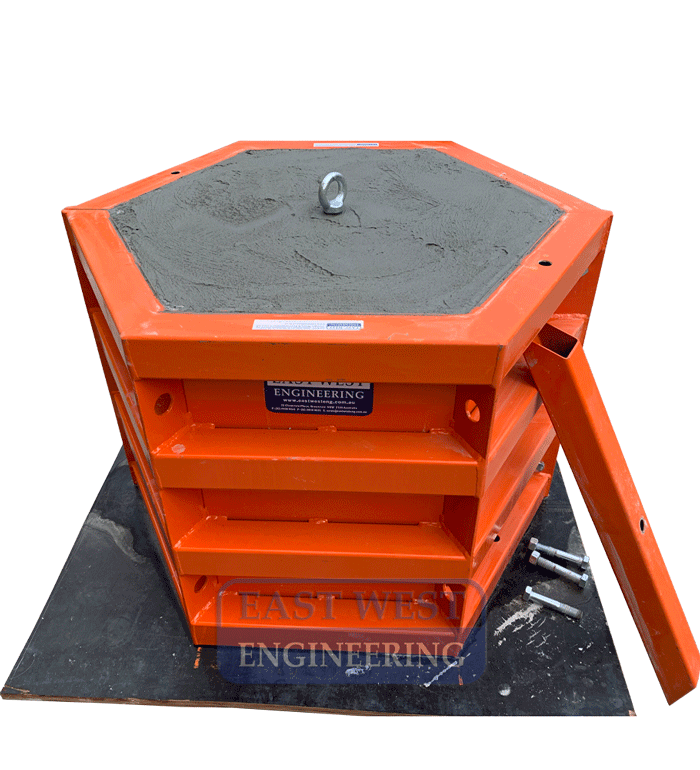

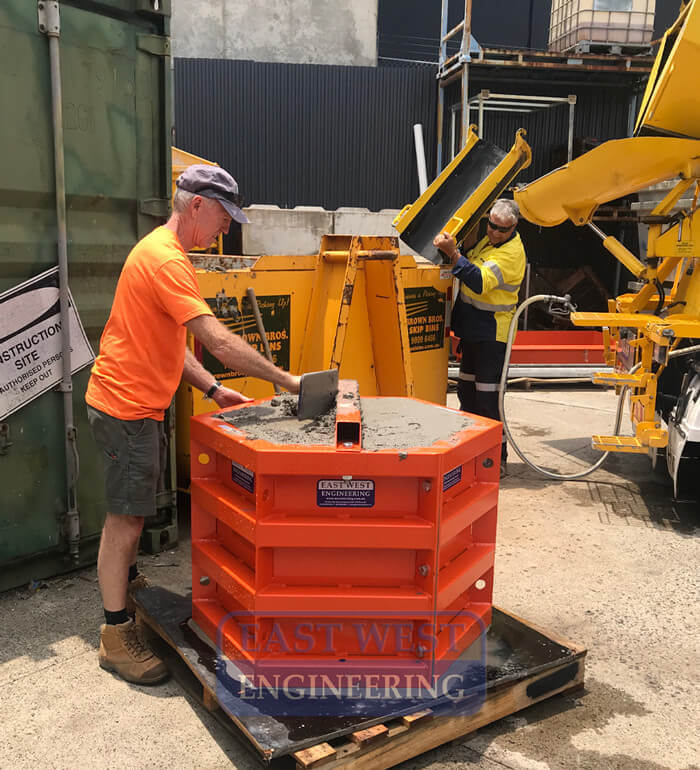

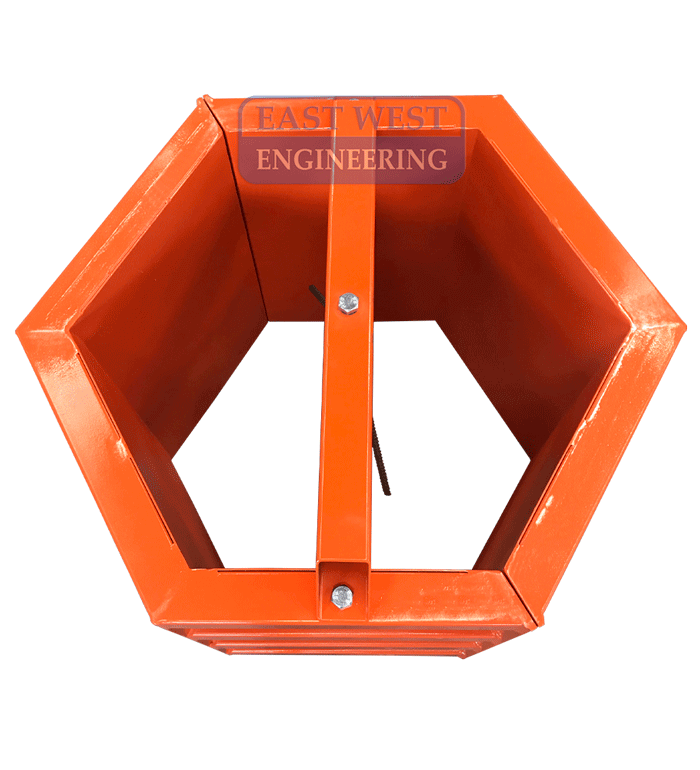

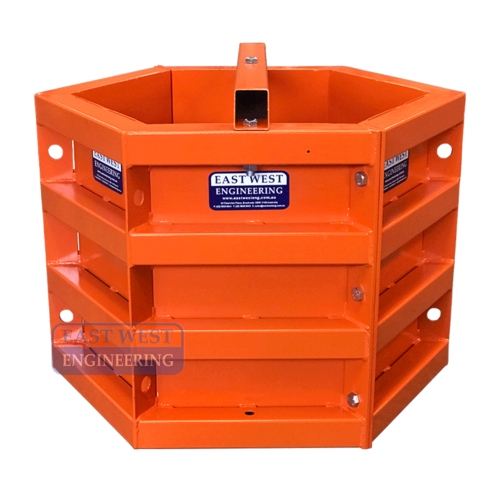

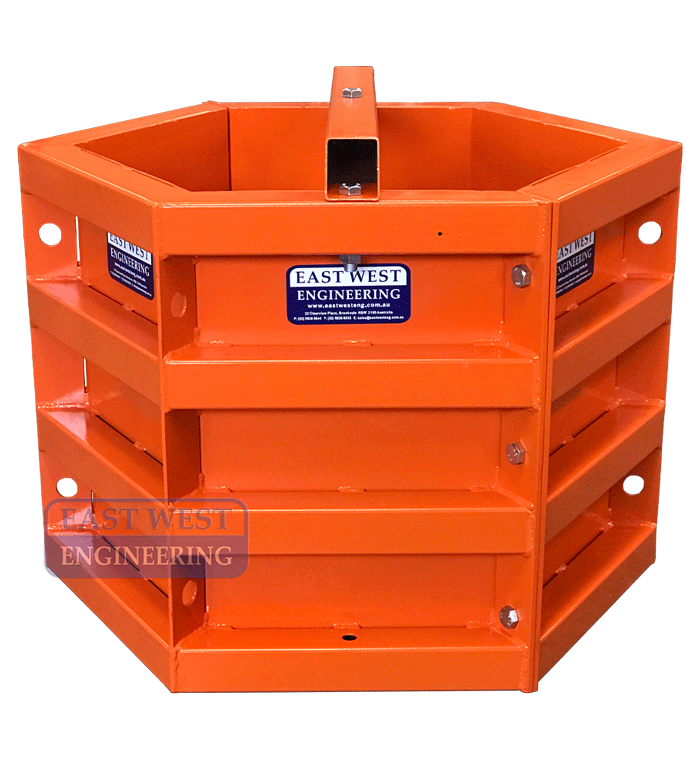

The CMHX90 Concrete Mould - Hexagonal is designed to precast hexagonal concrete blocks for use in various retaining wall applications.  Its simple construction and portable design makes it the perfect solution for recycling leftover concrete onsite, reducing the expense and waste of materials when disposing leftover concrete at the end of day’s pour.


  • Simple construction is fast to assemble
  • Concrete blocks can be used in various retaining walls applications
  • Provision for cast in ferrule for fast and easy positioning onsite

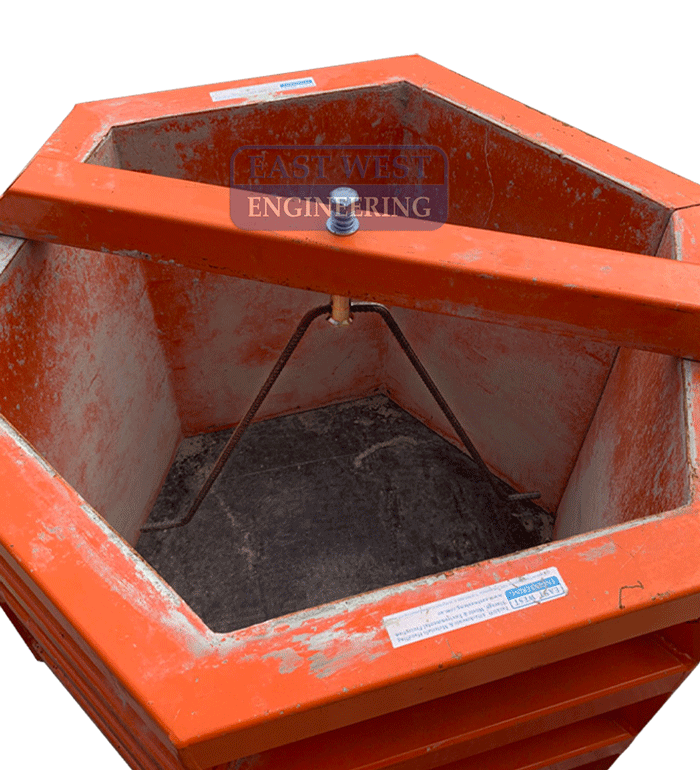

  • M20 eye bolt, ferrule and reinforcing bar supplied
  • Assorted stacking key plates available for straight (CMHX90-SK) or curved stacking applications
  • Lightweight and stackable design is easy to transfer between sites
  • Finished block weight approx. 900kg
  • Ferrule Kit (CMHX90-SK) and Box Ferrule Kit (CMFR) available for reorder
  • Enamel paint finish


  • (CMHX90-FK) Ferrule Kit allows lifting of block with the use of a removable eyebolt
  • (CMFR) Box Ferrule Kit eliminates need of eyebolt for lifting, flush surface for stacking
  • (CMHX90-SK) Stacking Kit allows blocks to be stacked into an inclining wall with 120mm set-back


 Capacity  0.4cu.m
 Overall Dimensions  1085 x 943 x 825mm
 Finished Block Dimensions        900 x 780 x 750mm
 Unit Weight  163kg


Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



Brand East West Engineering
Shipping Weight 163.0000kg
Shipping Width 1.200m
Shipping Height 0.750m
Shipping Length 1.200m
