Gas Cylinder Grab (250kg WLL) - 190 x 90 x 350mm



  • Dispatch in: 7-10 days

Calculate Shipping

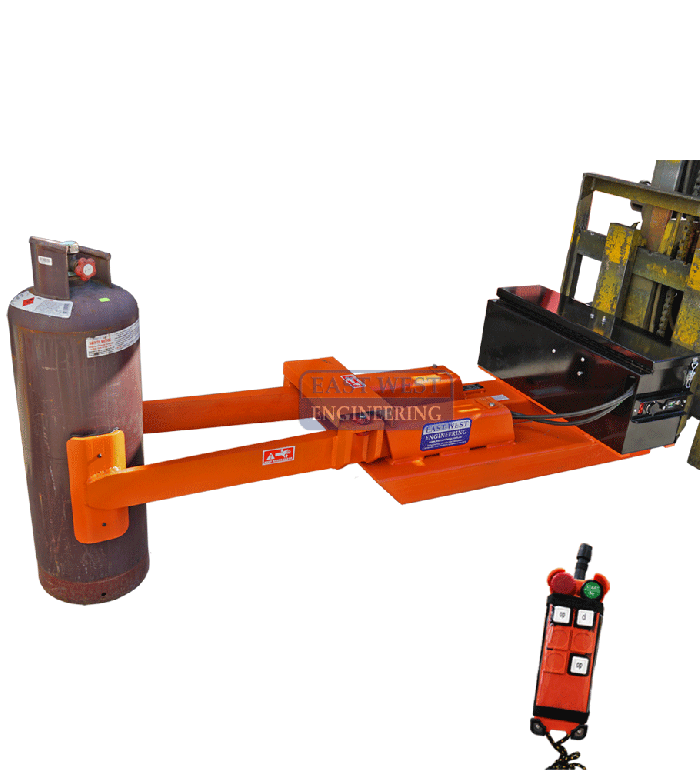

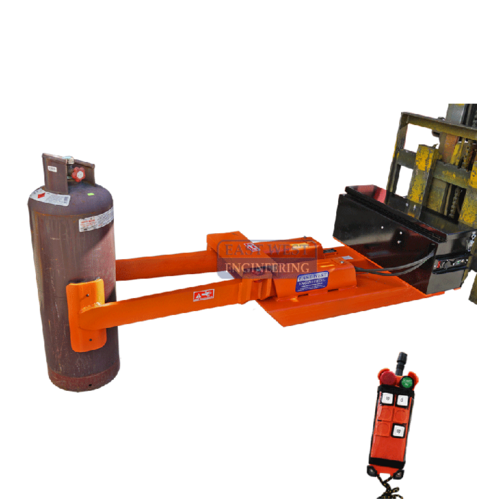

The HGA01-HPP Gas Cylinder Grab Attachment is designed to safely grab, lift and transport gas cylinders of most sizes around the worksite. Its long arm design allows the operator to easily load and unload from a pallet or truck.  This lifter can pick a single gas bottle from a pallet or gas cylinder bay without disturbing the others.


  • Safely handles 160-380mm diameter gas cylinders
  • Long arm reach for ease in loading and unloading
  • Fitted hydraulic power pack allows operation independent of the forklift hydraulic system
  • Replaceable bonded rubber clamp pads
  • Slip-on attachment and safety chain allows quick connection to a forklift
  • Excellent operator visibility
  • Also available in model without hydraulic power pack (one additional hydraulic circuit required)
  • Enamel paint finish

Hydraulic Power Pack

  • Remotely controlled pendant (50m distance range) with spare pendant supplied
  • 12-Volt DC hydraulic pump
  • Battery & battery charger
  • Robust cabinet box protects all components
  • Incorporated safety features include a two-button opening function and emergency stop
  • 180 AMP main fuse protects the full electrical circuit whilst a secondary 10AMP fuse adds further protection to the remote system and solenoid coils


 Model  HGA01  HGA01-HPP
 Working Load Limit (WLL)       250kg  250kg
 Load Centre  1800mm  1800mm
 Opening Range  160-380mm  160-380mm
 Unit Weight  200kg  250kg
 Fork Pocket Size  190 x 90mm      190 x 90mm
 Fork Pocket Centres  350mm  350mm
 Hydraulic Power Pack  No  Yes
 Hydraulic Pump  -  12-Volt DC


Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



Brand East West Engineering
Shipping Weight 250.0000kg
Shipping Width 0.790m
Shipping Height 0.790m
Shipping Length 1.200m
