Floor Mount Tipper w/ Stainless Insert - 1910 x 1555 x 1400mm

SKU: BKN125SS

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

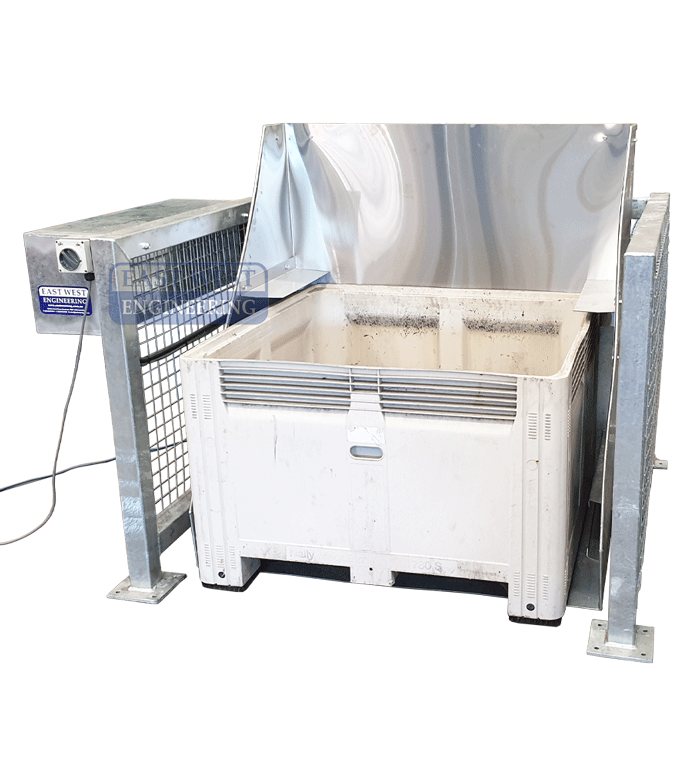

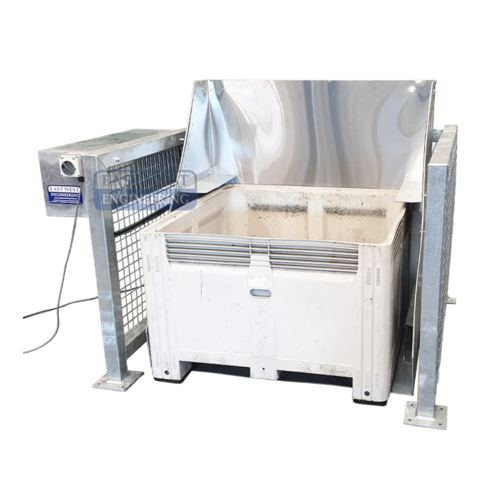

The BKN125 Floor Mounted Box Tipper is designed to allow the effortless tipping of nally bins, chep boxes or wheelie bins.

FEATURES:

  • Allows for 130 degree rotation of almost any bin
  • Suitable for forklift or hand pallet trolley bin loading
  • Operated by hydraulic lever
  • Supplied with side safety barriers
  • Hydraulic power pack, 240-volt, 2.2kw
  • Bin retainer fitted standard to suit mega bins
  • Wheel guide fitted standard to retain 80/120/240L wheelie bins
  • Can be customised to suit any application or bin type upon request
  • Tipping height approx. 900mm above floor
  • 42 second full tipping cycle
  • Available as a fork carriage model on request
  • Zinc finish

SPECIFICATIONS:

 Working Load Limit (WLL)  1000kg
 Rotation  130°
 Overall Dimensions  1910 x 1555 x 1400mm
 Dimensions (at full rotation)          1910 x 2185 x 2610mm
 Unit Weight   500kg approx.*
 Fork Pocket Size  185 x 60mm
 Fork Pocket Centres  900mm

---

If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to as soon as possible (often within the same day), with the best prices and shipping solutions available.

Alternatively, get in touch with our friendly team via phone on 1300 378 900

Why is this product priced on application (POA)?

For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(BKN125SS)

SKU BKN125SS
Brand East West Engineering
Shipping Weight 1382.0000kg
Shipping Width 1.560m
Shipping Height 1.400m
Shipping Length 1.900m
