Crane Drum Rotator (Chain Driven) - 1000kg WLL

SKU: CDR1000C

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

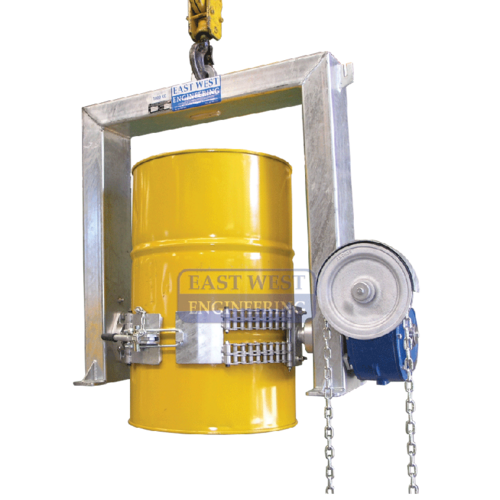

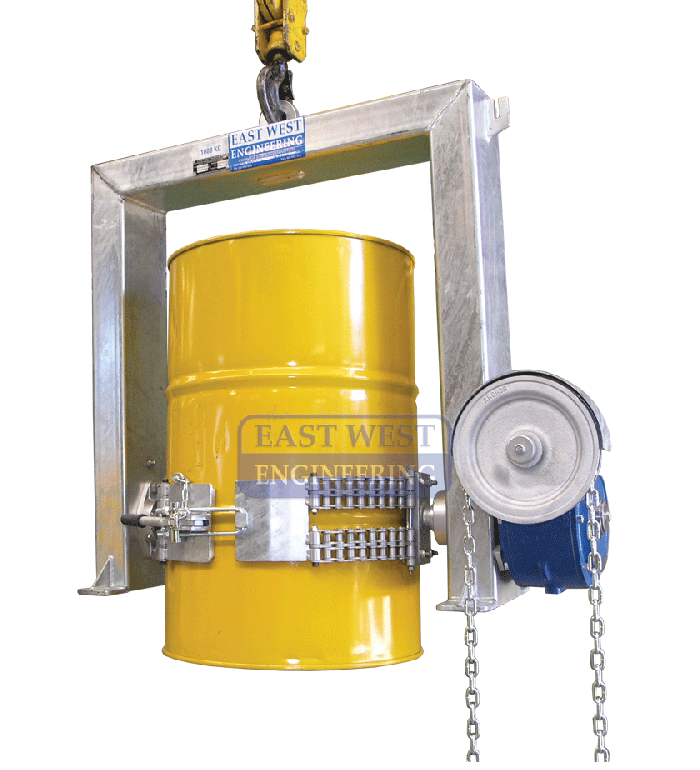

The heavy lift capacity CDR1000C Crane Drum Rotator is designed to lift and rotate 205 litre steel drums by overhead crane. Rotation of the drum is controlled throughout the operation by the chain driven gearbox which locks the drum in position when operator stops pulling the chain, preventing dangerous and uncontrolled movements.

FEATURES:

  • Empties a standard 205 litre drums with minimal effort
  • Heavy lift capacity allows 360° rotation of drum up to 1000kg
  • Suitable for drum rotation up to 3m above ground
  • Rotation carried out via a hand chain
  • Belly strap and eccentric lock secures drum in position
  • Locking pin prevents accidental release during tipping cycle
  • Large worm drive gearbox provides automatic braking
  • Suits mining operations, manufacturers and foundries
  • Zinc finish

SPECIFICATIONS:

 Working Load Limit (WLL)  1000kg
 Rotation  360°
 Rotation Shaft CL to Lifting Eye      940mm
 Unit Weight  220kg

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(CDR1000C)

SKU CDR1000C
Brand East West Engineering
Shipping Weight 288.0000kg
Shipping Width 1.200m
Shipping Height 0.600m
Shipping Length 1.200m
Shipping Cubic 0.720000000m3
