Concrete Kibble w/ Slide Valve - 1.0cu.m



  • Dispatch in: 7-10 days

Calculate Shipping

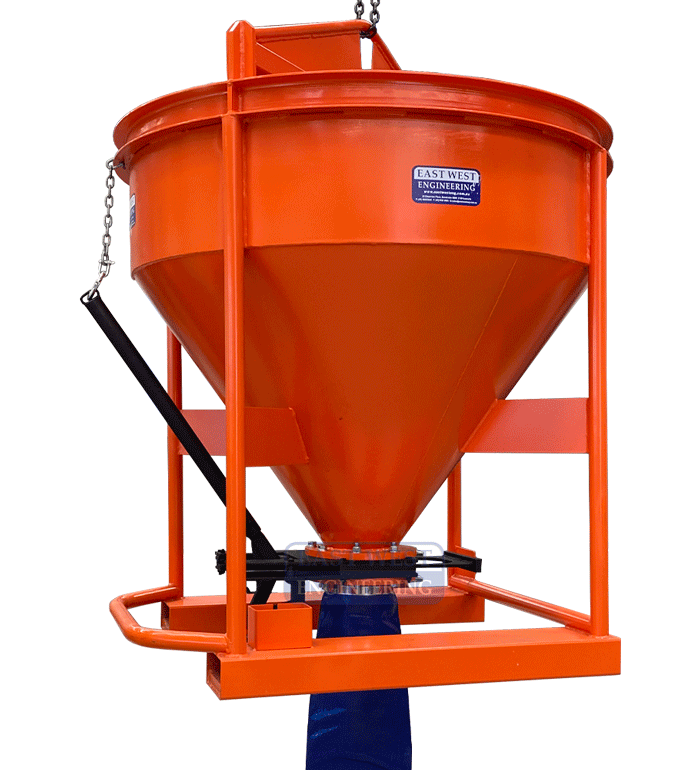

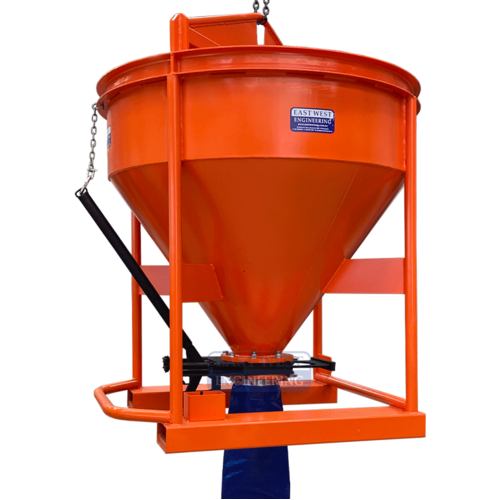

The CKSV10 Concrete Kibble is designed for the easy transfer of concrete or similar materials on-site by overhead crane.


  • Suits use with concrete and other materials
  • Ideal for filling wall cavities, columns and other confined spaces
  • Lever actuated slide valve allows operator to regulate concrete flow
  • 200mm diameter slide valve allows precise control over the concrete flow
  • 1.5m long, 200mm diameter ‘Lay Flat’ hose fitted
  • Fork pockets and crane lugs fitted for transport around the work site
  • Smooth interior allows easy discharge and fast cleaning
  • Also available as a hydraulic unit (CKSV10-HPP) allowing remote control of kibble
  • Enamel paint finish


 Working Load Limit (WLL)      3000kg
 Capacity  1.0 cu.m
 Transport Dimensions  1505 x 1445 x 1870mm
 Unit Weight  295kg
 Fork Pocket Size  185 x 60mm
 Fork Pocket Centres  870mm


Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



Brand East West Engineering
Shipping Weight 1288.0000kg
Shipping Width 1.450m
Shipping Height 1.840m
Shipping Length 1.450m
