Concrete Kibble Laydown - 3.0cu.m

SKU: CKRO30

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

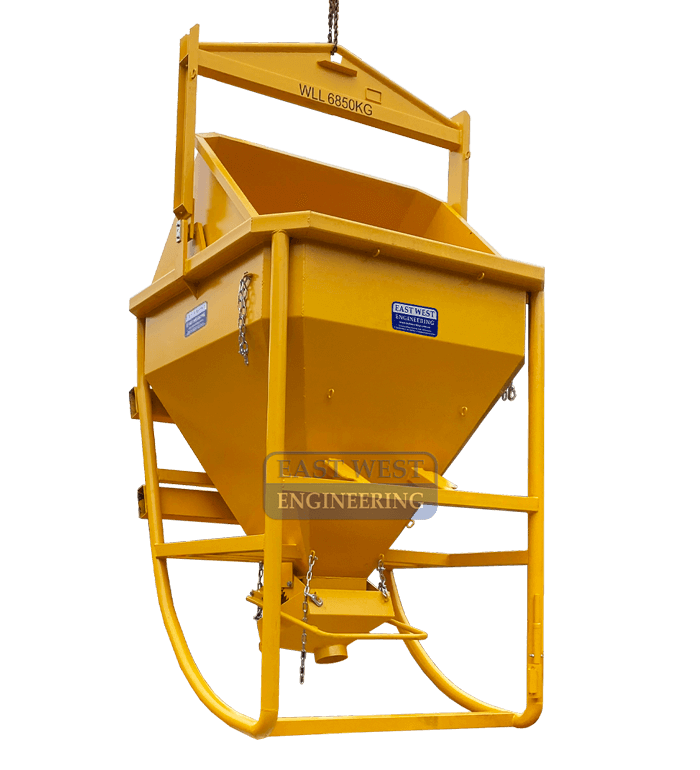

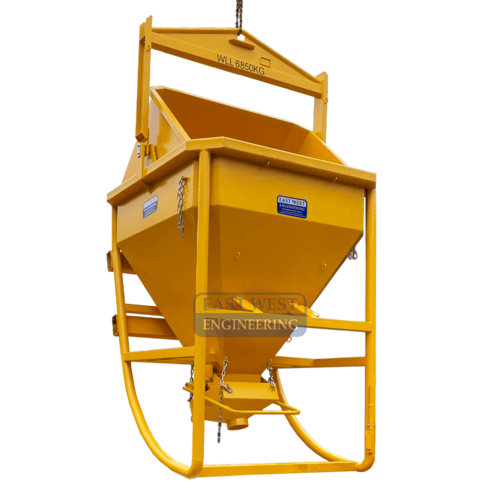

The CKRO Concrete Kibble is a heavy duty, roll-over style for easy transfer of concrete on site by overhead crane.

FEATURES:

  • Suits large applications with models available for up to 3cu.m capacity
  • Roll-over (laydown) style allows filling from concrete dispensing chute
  • Fitted with a lever operated 400mm x 400mm clamshell gate
  • Removable concrete funnel with 2m lay-flat hose allows controlled flow when filling wall cavities, columns or narrow formwork
  • Fork pockets fitted for transport around the work site
  • Hydraulic Kibble Option (HPP-REMOTE) available to remotely control kibble
  • Enamel paint finish

SPECIFICATIONS:

 Model Volume Working Filling Laydown Pocket Pocket  Unit Lay Flat Hose
  Capacity Load Limit Height Dimensions Size  Centres  Weight Dimensions
  (cu.m) (kg) (mm) L x D x H (mm) (mm) (mm)  (kg) (mm)
 CKRO30 3 7500 1240 3615 x 2100 x 2415 185 x 85 700 1310 200 Ø x 2000

---

If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to as soon as possible (often within the same day), with the best prices and shipping solutions available.

Alternatively, get in touch with our friendly team via phone on 1300 378 900

Why is this product priced on application (POA)?

For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(CKRO30)

SKU CKRO30
Brand East West Engineering
Shipping Weight 4795.0000kg
Shipping Width 2.440m
Shipping Height 2.100m
Shipping Length 2.810m
