Brick Cage (High Pallets) - 2000kg WLL

SKU: BSN-6HW

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

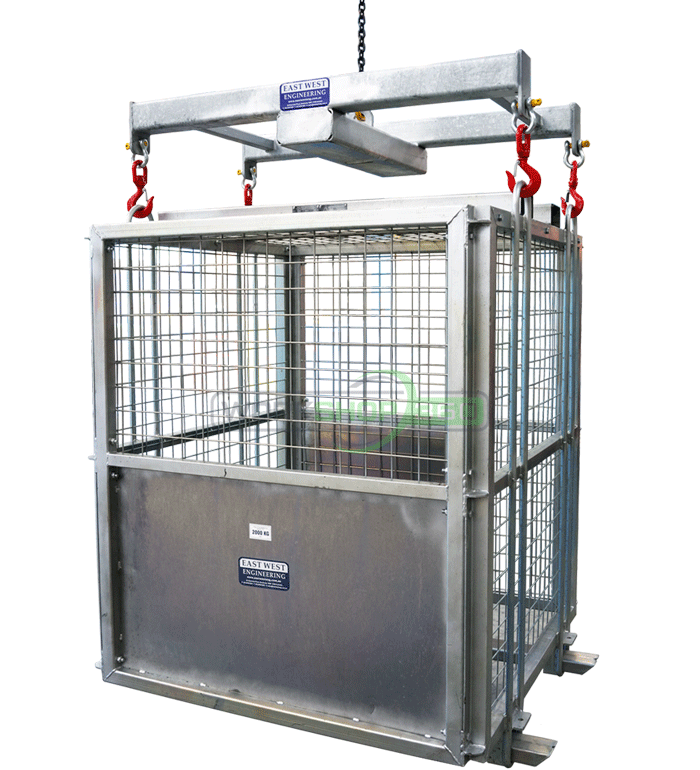

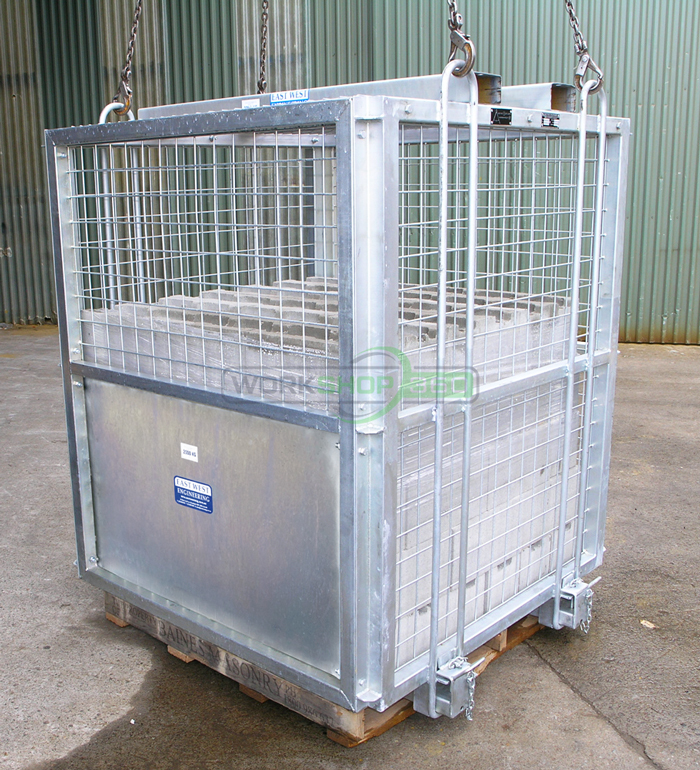

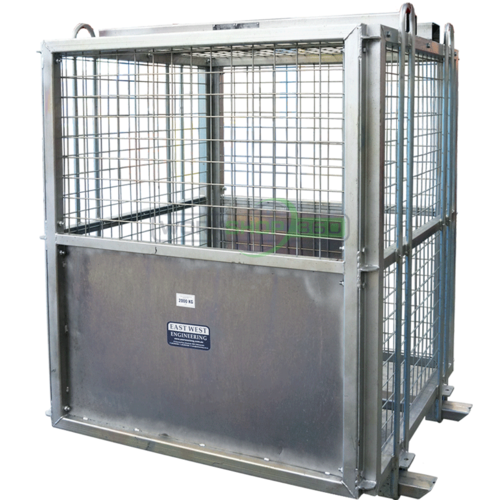

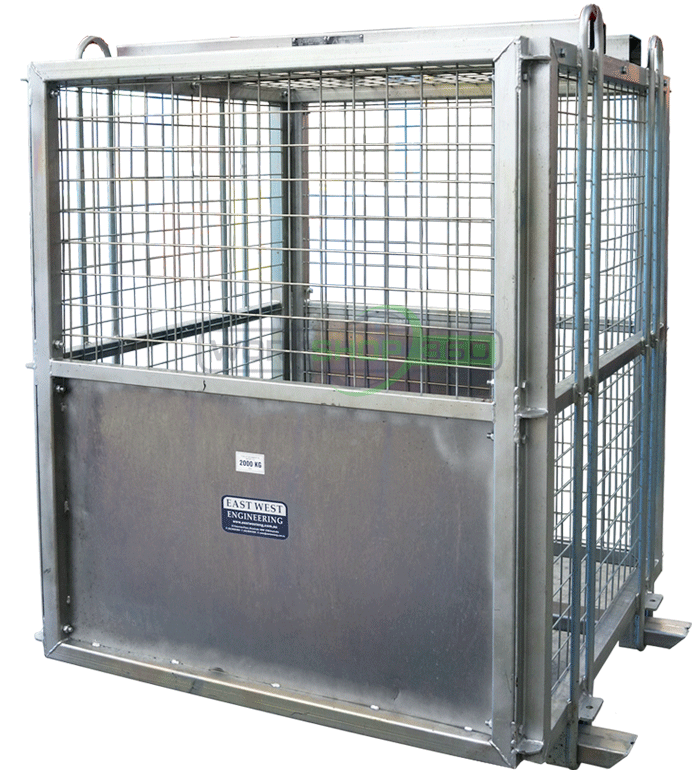

The BSN-6H Brick Cage is a fully enclosed cage designed to safely transport high pallets of bricks or similar loose products on building sites via overhead crane.

FEATURES:

  • Suits bricks or similar products
  • Suitable for use with 1200mm square pallets up to 1700mm high
  • Fully enclosed mesh panelling
  • Fitted with Crane Lugs (4 point lift) and Forklift pockets
  • Signage Panels included on 2 opposite sides
  • Tine storage when not hoisting
  • Optional Lifting Frame (BSN6-CL) available
  • Zinc finish

SPECIFICATIONS:

 Working Load Limit (WLL)     2000kg
 Max. Pallet Height  1700mm
 Overall Height  1920mm
 Unit Weight  280kg

Supplied standard as 'flatpack' (BSN-6HF) for on-site assembly or may be supplied as a 'welded assembled' (BSN-6HW) unit.

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(BSN-6HW)

SKU BSN-6HW
Brand East West Engineering
Shipping Weight 1285.0000kg
Shipping Width 1.500m
Shipping Height 1.900m
Shipping Length 1.300m
Shipping Cubic 3.859000000m3
