Electric Pull-Lift Winch (2.2t) - 16mm x 100m

SKU: BPL3220

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 1 Minimum Order Quantity 1

Calculate Shipping

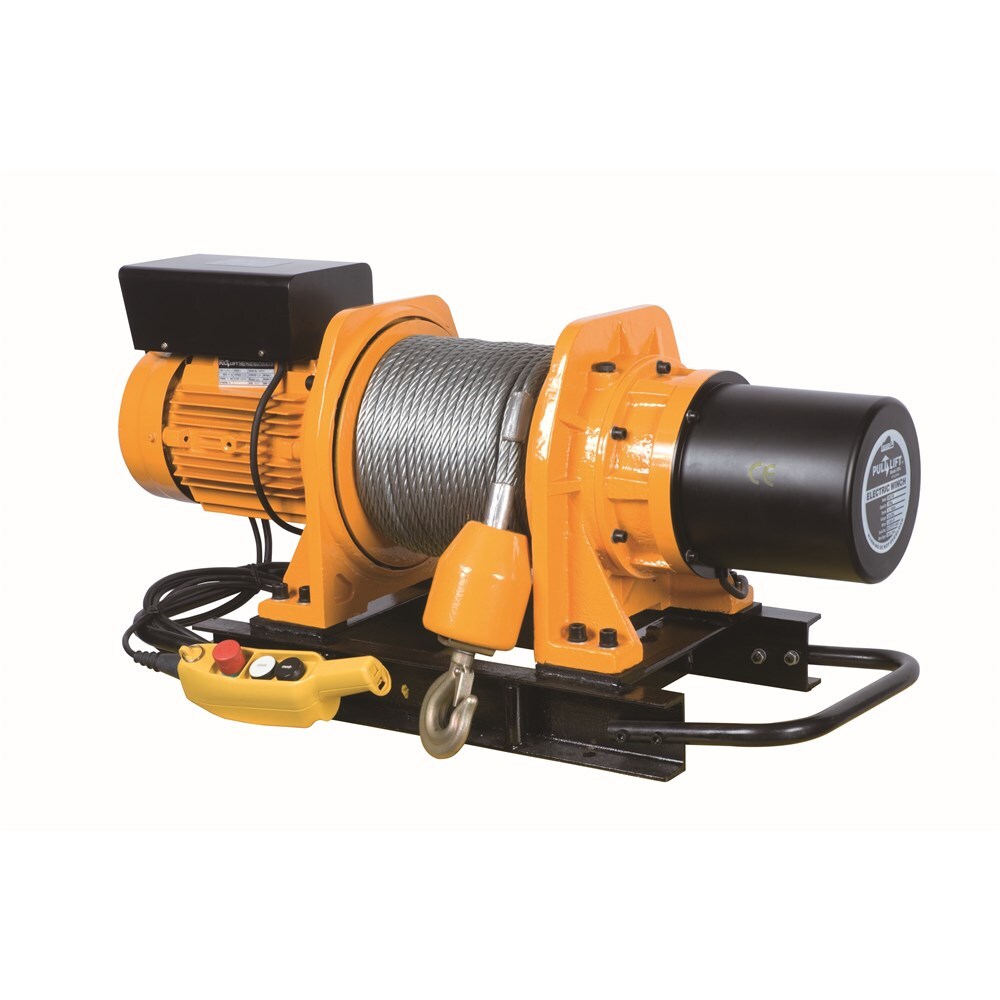

Beaver Brands Electric Pull-Lift Winch (2.2t)



This three-phase electric winch is manufactured by Beaver, and has a robust construction stuitable for buidling sites, slipways, and industrial use. This winch comes with 24V IP65 pendant control with emergency stop.



Specifications:

  Product Code     Rated Capacity   Speed   Motor Power     % ED     Effective Pull Height     Wire Rope Diameter x Length     Weight
BPL3050 0.5t   12-18m/min   2.5HP 25 58m 9mm x 60mm 136kg
BPL3100 1t 12-18m/min 5HP 25 58m 11mm x 60mm 156kg
BPL3220 2.2t 7-12.5m/min 7.5HP 25 97m 16mm x 100mm 450kg

The connection of the wire rope to the winch drum is via set screw, to ensure rope retention.

  Rated Capacity   A B C D E F
0.5t   4 x 10.5D     400mm     330mm   922mm 372mm 430mm
1t 4 x 10.5D 400mm 330mm 935mm 372mm 430mm
2.2t 4 x 12D 600mm 499mm  1160mm     565mm     450mm

---

 If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to as soon as possible (often within the same day), with the best prices and shipping solutions available.

 Alternatively, get in touch with our friendly team via phone on 1300 378 900

Why is this product priced on application (POA)?

For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(BPL3220)

SKU BPL3220
Brand Beaver Brands
Shipping Weight 450.0000kg
