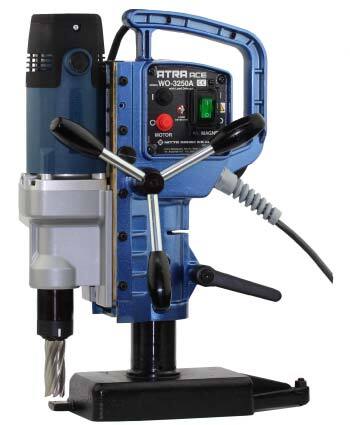

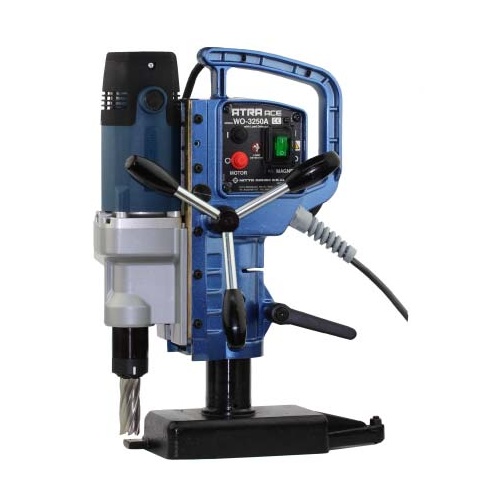

Nitto ATRA ACE Manual Magnetic Base Drill (Model: WO-3250)



  • Dispatch in: 3-4 days

Calculate Shipping

           From the extremely efficient electro-magnet to the height adjustable frame with reversible feed handles, the new ATRA ACE is more compatible to user needs while offering greater                         operator safety.
           Original OZBROACH cutters drastically shorten drilling time when compared to similar sized conventional twist drills. An optional One-Touch keyed chuck allows the use of up to 12mm                   twist drills.
           Newly developed Over-Load shutdown, magnet open-circuit sensor, and fail-safe restart technology formerly only found on high-end Nitto Kohki automatics is incorporated on the machine             to further increase drill output while keeping costs down and safety paramount.

  • Improved Overload Detection with LED Indicator
  • Advanced Motor Design
  • Magnet Switch Protector
  • Fail-Safe Restart
  • Reversible Feed Handles
  • Complete with coolant tank
  • Supplied in carry case

  • On-site hole cutting in steel plates, H-Beams shaped bars, framework, shipbuilding, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs
Standard Accessories

  • Coolant Tank complete
  • Pilot Pin 0625 / 0650 / 0825 / 0850 : 1 pc. each
  • 3mm Hex Socket Screw Key : 1 pc.
  • Gaurd Ass'y : 1 pc.
  • 8mm x 10mm Spanner : 1 pc.
  • Side Handle Ass'y : 1 set
  • Safety Strap : 1 pc.
Optional Accessories

  • OZBROACH: One-touch type: 25L and 50L
  • 13mm keyed chuck with one-touch adaptor TB07690
Hole-Cutting Capacity

  • One-touch type OZBROACH:
    * Hole Dia.: Max. 32mm - Plate Thickness Max. 50mm
Model WO-3250A
Power Source (Single Phase) 220~240V AC 50-60Hz
Rated Power Consumption 950W
Rated Current 4.3A
No Load Speed 530RPM
Magnetic Power Consumption 70W
Magnetic Holding Power 900kg/f
Magnetic Dimension 99mm X 177mm
Hole Cutting Capacity 32mm
Max. Plate Thickness 50mm
Mass (Weight) 13kg


Barcode # 9340000000000
Brand Nitto
Shipping Weight 13.0000kg
Shipping Width 0.200m
Shipping Height 0.400m
Shipping Length 0.300m
