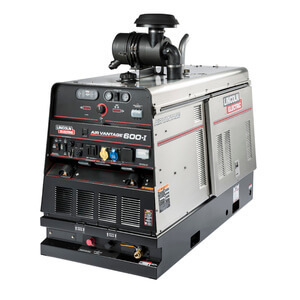

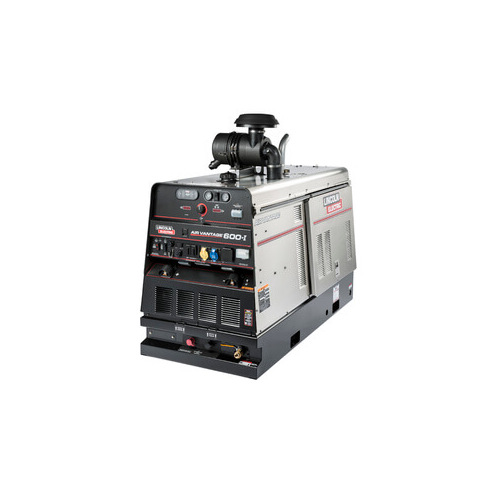

Lincoln Electric Air Vantage 600-I Engine Driven Welder
Powerful, Dependable and Advanced.
- When the job calls for structural steel welding and other rugged outdoor work, you need an engine-driven welder that covers all your process needs – stick, MIG, TIG, flux-cored and gouging and is Tier 3 EPA compliant emission standard. The Air Vantage 600-I has been re-engineered to deliver smoother arc characteristics and improved pipe welding capabilities.
- Choose the Air Vantage® 600-I for 575A/43VDC 100% duty cycle welding and gouging with up to 10mm carbons. The Air Vantage® 600-I includes a belt-driven VMAC® compressor with separate gauges to monitor compressor hours and pressure.
- Welder – Up to 600 amps of welding current to tackle numerous welding and carbon arc gouging applications
- Generator – 20 kW of continuous three phase power to run industrial tools such as plasma cutters, pumps, or inverter welders
- Air Compressor – 60 cfm @ 100 psi (1.7 cmm @ 6.9 bar) of compressed air powered by VMAC®
- Select one of five standard process modes including CC-Stick, Downhill Pipe, DC Touch Start TIG®, CV-Wire, or Arc Gouging mode, which maximizes output for up to 3/8 in. (9.5 mm) carbon rods.
Optimal Arc Performance
- Minimal spatter for stick or pipe welding
- Enhanced gouging performance prevents the engine from stalling, resulting in smooth material removal
- Expanded welding capabilities with customized modes for stainless, aluminum, and steel as well as advanced SAW and orbital pipe modes(1)
- Pulsing capability available to enable better arc control in out-of-position work and can lower heat input for critical welds(1)
- Lab tested, field proven ruggedness and durability
- Engineered for outdoor use in the harshest environments (IP23 Rated)
- High quality electrical insulation, stainless steel paneling, and potted PC boards for added protection and durability
- Manufacturer in an ISO 9001 and ISO 14001 facility
Industrial Diesel Engine
- 4 cylinder, 65.7 HP, turbocharged Deutz® TD2.9L4 diesel engine runs smooth and quiet
- Standard engine gauges allow you to monitor performance at a glance
- Tier 3 engine does not require ultra-low sulfur diesel fuel
- 25 gallon (94.6 liter) fuel tank for longer running time
