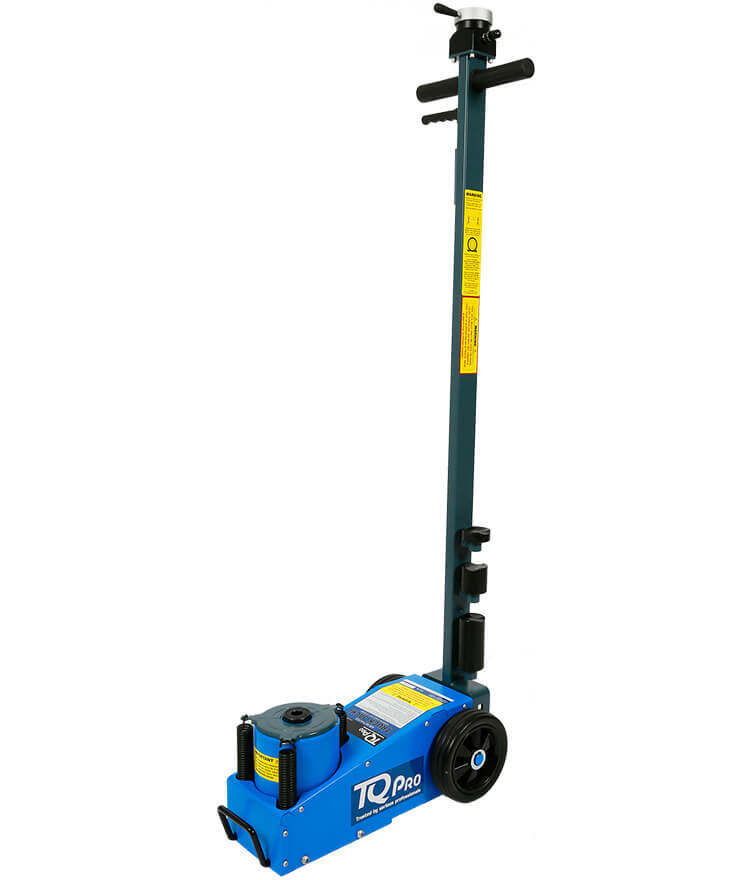

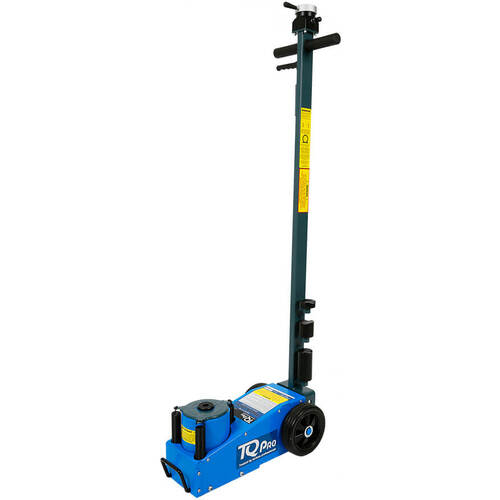

TQPro 20,000kg Air Actuated Expert Series Truck Jack - Single Stage

SKU: PROTRJA20T

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping

The TQ Pro "Latest Technologies" Truck Jacks are made to TQB Brands specification using superior quality components that are built to exacting standards through CNC machining and Robotic Welding. The result is top industrial performance and reliability. TQ Pro "Latest Technologies" Truck Jacks are the perfect choice for a wide variety of uses. These Commercial Grade Jacks are carefully constructed from the highest grades of quality steel. The super strong hydraulic pump utilises wear-resistant American Made XTP double sealing ring technology. Only the finest quality of Hydraulic Oil is used that has been tested from -25°C - 60°C.

Use these quality truck jacks with a 145–175psi rated air pressure supply to lighten the load and provide the fast, strong lifting power you need. With several lifting options as well as included saddle adaptors…the wide range of TQ Pro "Latest Technologies" Truck Jacks will suit most desired applications from agriculture to mining, earth-moving to passenger transport as well as aviation and military.

This Air Actuated Truck Jack is designed for heavy duty commercial use and features a long reach “T" handle and large rubber wheels for smooth manoeuvring around the workshop. As always with TQ Pro "Latest Technologies", safety is just as important as highest standard quality, so all TQ Pro "Latest Technologies" Truck Jacks have a built-in safety valve to prevent overloading and keep the operator safe. Additional safety feature includes a Self-Return lowering and lifting switch to ensure complete control during operation. With a minimum height of 215mm this jack is ideal for medium ground-clearance vehicles and a high lift maximum of 556mm (includes additional lifting saddles), this Air Actuated Truck Jack is a very versatile heavy-lifter suitable for most workshops.

Features:

  • Seals made in America
  • Double Sealing Function using XTP Industry Sealing
  • Telescopic air actuation lift (air-hydraulic pump)
  • Long T-handle lets you easily position your jack under vehicle
  • Self-Returning Lowering and Lifting Switch
  • Internal and External Cylinders hard chromed
  • High manoeuvrability & deep reach under vehicles
  • 3 extension adaptors / saddle plates
  • Large rubber wheels
  • All adaptors can be properly stored for transport on each side of the jack

Specifications:

  • Safe Working Capacity: 20,000kg
  • Maximum Height: 456mm
  • Minimum Height: 215mm
  • Hydraulic Lift: 141mm
  • Adjustable Screw: 85mm
  • Adaptors: 20, 50, 100mm
  • Handle Length: 1335mm
  • Operating Air Pressure: 145-175psi
  • Chassis: 520(L) x 215(H) x 258(W)mm
  • Nett Weight: 40kg
  • Carton:  580x290x260mm
  • Gross Weight: 42kg

Intended Use:

For professional specialist use on truck, agriculture, construction, mining, mobile home, oil field, automotive, and marine applications where lifting is required.

NOTE: This jack must only be used on hard level surfaces. Do not get under a load that is supported by a truck jack. ALWAYS USE SUPPORT STANDS.

---
