Fork Extension Slippers (8t WLL) - 3.0m

SKU: FE4-30

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

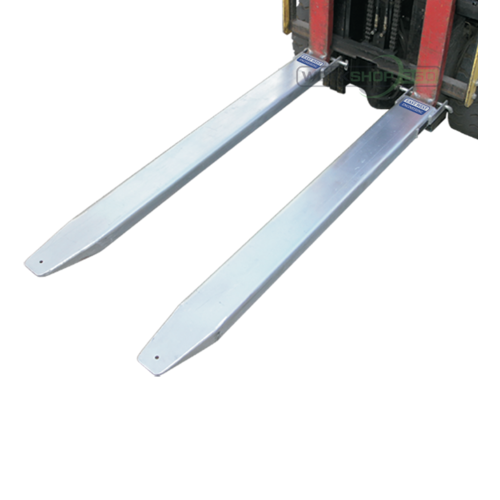

Designed to extend the length of fork tines and versatility of your forklift truck. The slimline profile FE Fork Extension Slippers are designed and manufactured in accordance with AS 2359.15.

FEATURES:

  • Supplied with toggle locking pins for securing to tines
  • Fitted with rating plate
  • Can be manufactured up to 16T capacity
  • Zinc finish

SPECIFICATIONS:

 Model WLL
(kg)
Load
   Centre
(mm)
   Length
(mm)
   Max. Tine Size
(mm)
   Min. Tine Length
(mm)
   Weight/
pair
(mm)
   FE1-16       2500       500      1600       100 X 45 960 42
 FE1-18 2500 500 1780 100 X 45 1068 46
 FE1-20 2500 500 2000 100 X 45 1200 52
 FE1-24 2500 500 2400 100 X 45 1440 61
 FE2-16 4000 500 1600 130 X 50 960 60
 FE2-18 4000 500 1780 130 X 50 1068 66
 FE2-20 4000 500 2000 130 X 50 1200 74
 FE2-24 4000 500 2400 130 X 50 1440 88
 FE3-16 5000 500 1600 155 X 55 960 69
 FE3-18 5000 500 1780 155 X 55 1068 77
 FE3-20 5000 500 2000 155 X 55 1200 86
 FE3-24 5000 500 2400 155 X 55 1440 102
 FE3-30 5000 500 3000 155 X 55 1800 126
 FE4-18 8000 600 1780 160 X 65 1068 133
 FE4-20 8000 600 2000 160 X 65 1200 148
 FE4-24 8000 600 2400 160 X 65 1440 177
 FE4-30 8000 600 3000 160 X 65 1800 221

NOTE: Fork arm must be measured to ensure correct fit

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(FE4-30)

SKU FE4-30
Brand East West Engineering
Shipping Weight 221.0000kg
Shipping Width 0.250m
Shipping Height 0.250m
Shipping Length 3.100m
Shipping Cubic 0.194000000m3
